NCD98010 Series

12-Bit Low Power SAR ADC Unsigned Output

Catalog

12-Bit Low Power SAR ADC Unsigned Output

Part	Number of Bits	Mounting Type	Package / Case	Supplier Device Package	Configuration	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of Inputs	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface

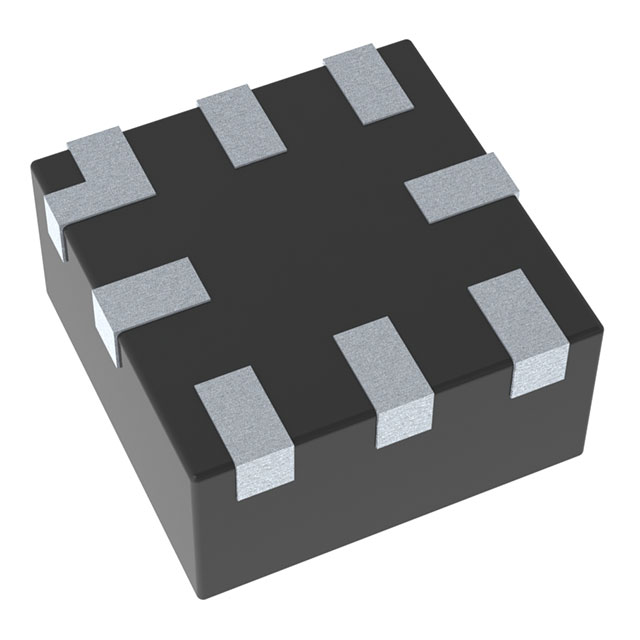

ON Semiconductor NCD98010XMXTAG	12 bits	Surface Mount	8-XFQFN	8-X2QFN (1.5x1.5)	ADC	1.65 V	3.6 V	1	Differential	-40 °C	120 °C	1.65 V	3.6 V	SPI

Catalog

12-Bit Low Power SAR ADC Unsigned Output

Key Features

• Nanowatt Power Consumption, 2 MSPS Sampling rate, 12-bit resolution

Description

The NCD98010 (unsigned output) ADC product provides an extremely low power solution for analog to digital conversion applications using a capacitor−basedsuccessive−approximation architecture. Optimized for low power andspeed, the NCD98010 can achieve a sample rate of 2 MSPS whileconsuming less than 1 mW of power. The device also features a largeinput voltage range of 1.65V to 3.3V for various applications for both analog and digital supplies. The SPI−compatible interface provides astraight−forward data−acquisition method.
