794071 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

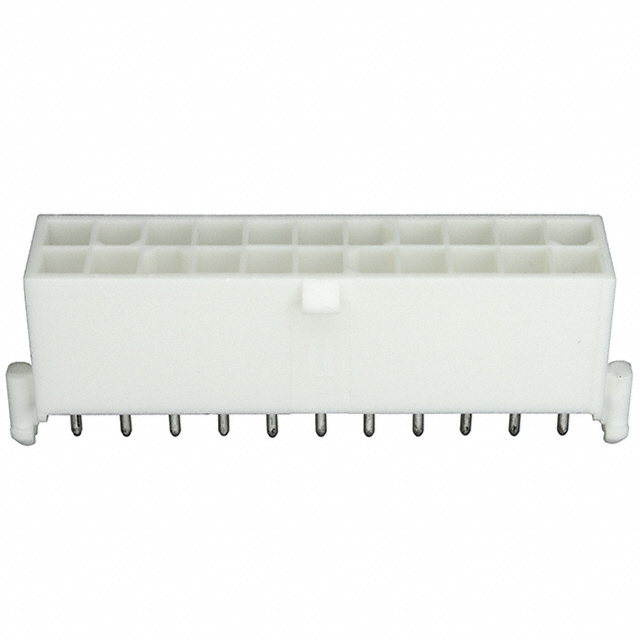

CONN HEADER VERT 22POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Termination | Contact Material | Contact Shape | Fastening Type | Number of Rows [custom] | Insulation Height | Insulation Height | Contact Finish - Mating | Insulation Material | Pitch - Mating | Pitch - Mating | Features | Insulation Color | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Connector Type | Number of Positions Loaded | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Number of Positions | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shrouding | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Solder | Brass | Circular | Locking Ramp | 2 | 13.5 mm | 0.531 in | Tin-Lead | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | Board Lock | White | 4.45 mm | 0.175 in | Through Hole | 150 Áin | 3.81 Ám | Board to Cable/Wire | Header | All | UL94 V-0 | 4.14 mm | 0.163 in | Tin-Lead | 22 | Varies by Wire Gauge | 85 °C | -20 ░C | 600 VAC | Shrouded - 4 Wall | Male Pin |
