3ATL6 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Switch Travel	Mechanical Life	Outline [x]	Outline [y]	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Orientation	Mounting Type	Operating Force	Termination Style	Circuit	Actuator Height off PCB, Vertical [z]	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Features	Illumination Type, Color	Actuator Type

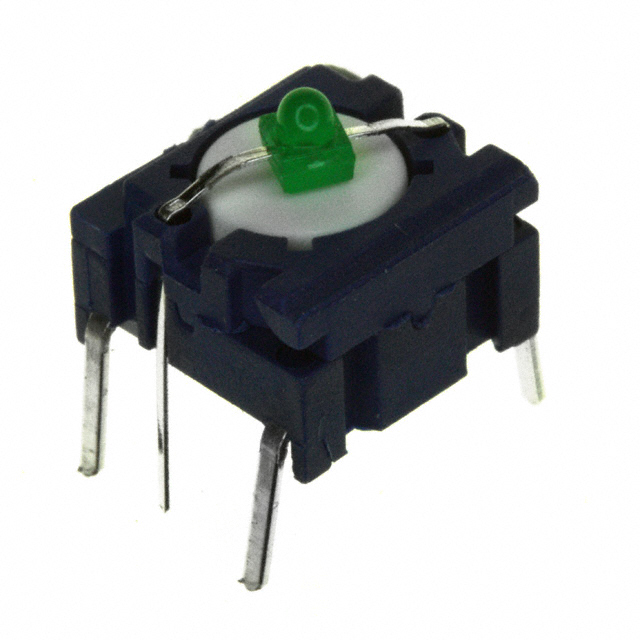

MEC Switches 3ATL620	Polybutylene Terephthalate (PBT)	1 mm	10000000 Cycles	10.1 mm	10.1 mm	Illuminated	115 °C	-40 C	0.05 A 24 VDC	Top Actuated	Through Hole	300 gf	PC Pin	SPST-NO	6.4 mm	Off-Mom	IP67 - Dust Tight Waterproof	2.1 VDC	Sealed - Flux Protection	Green LED	Plunger for Cap

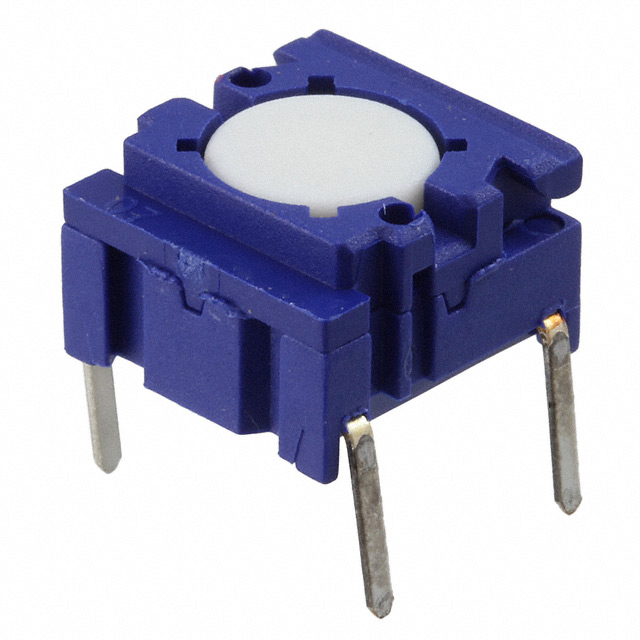

MEC Switches 3ATL6Q	Polybutylene Terephthalate (PBT)	1 mm	10000000 Cycles	10.1 mm	10.1 mm	Non-Illuminated	115 °C	-40 C	0.05 A 24 VDC	Top Actuated	Through Hole	300 gf	PC Pin	SPST-NO	6.4 mm	Off-Mom	IP67 - Dust Tight Waterproof		Sealed - Flux Protection		Plunger for Cap

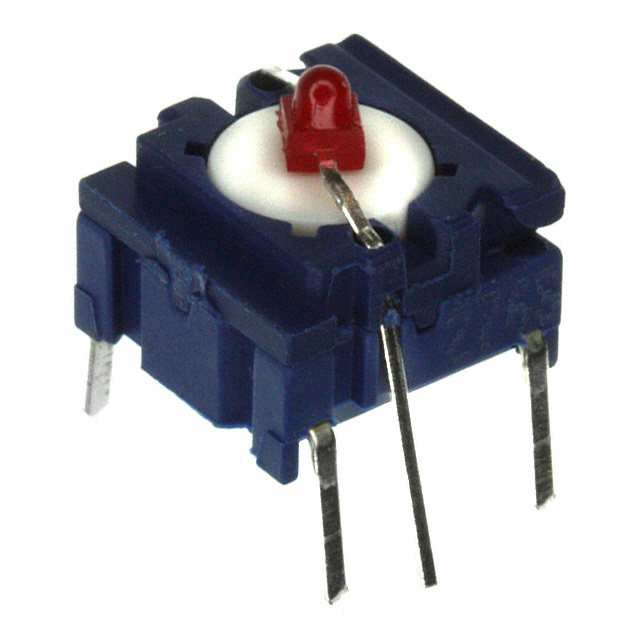

MEC Switches 3ATL680	Polybutylene Terephthalate (PBT)	1 mm	10000000 Cycles	10.1 mm	10.1 mm	Illuminated	115 °C	-40 C	0.05 A 24 VDC	Top Actuated	Through Hole	300 gf	PC Pin	SPST-NO	6.4 mm	Off-Mom	IP67 - Dust Tight Waterproof	2 VDC	Sealed - Flux Protection	LED Red	Plunger for Cap

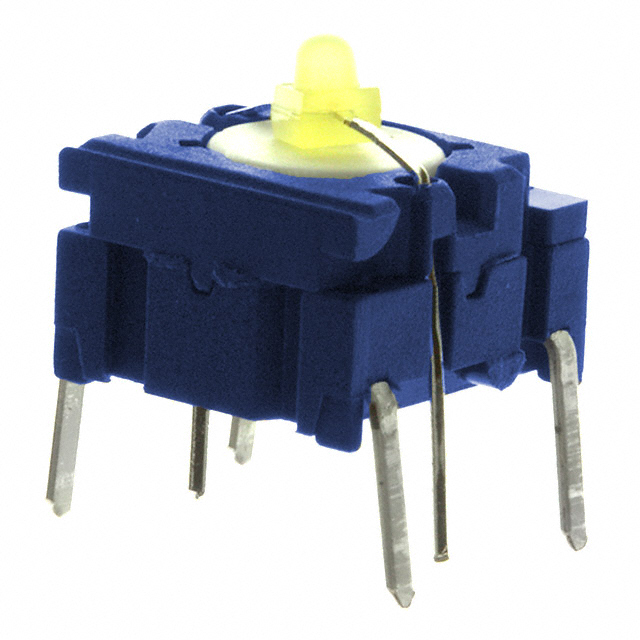

MEC Switches 3ATL640	Polybutylene Terephthalate (PBT)	1 mm	10000000 Cycles	10.1 mm	10.1 mm	Illuminated	115 °C	-40 C	0.05 A 24 VDC	Top Actuated	Through Hole	300 gf	PC Pin	SPST-NO	6.4 mm	Off-Mom	IP67 - Dust Tight Waterproof	2.1 VDC	Sealed - Flux Protection	LED Yellow	Plunger for Cap
