HWS15 Series

Catalog

AC/DC CONVERTER 3.3V 15W

Part	Voltage - Output 1	Approval Agency	Power (Watts)	Type	Applications	Features	Efficiency	Voltage - Isolation	Current - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type
TDK Corporation HWS15A-3	3.3 V	CE	15 W	Open Frame	Industrial ITE (Commercial)	Adjustable Output Universal Input	68 %	3000 V	3 A	1	31.5 mm	1.24 in	82 mm	80 mm	3.23 in	3.15 "	70 °C	-10 °C	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount
TDK Corporation HWS15A-15/A	15 V	CE	15 W	Enclosed	Industrial ITE (Commercial)	Adjustable Output Universal Input	80 %	3000 V	1 A	1	31.5 mm	1.24 in	82 mm	80 mm	3.23 in	3.15 "	70 °C	-10 °C	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount
TDK Corporation HWS15A-15	15 V	CE	15 W	Open Frame	Industrial ITE (Commercial)	Adjustable Output Universal Input	80 %	3000 V	1 A	1	31.5 mm	1.24 in	82 mm	80 mm	3.23 in	3.15 "	70 °C	-10 °C	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount

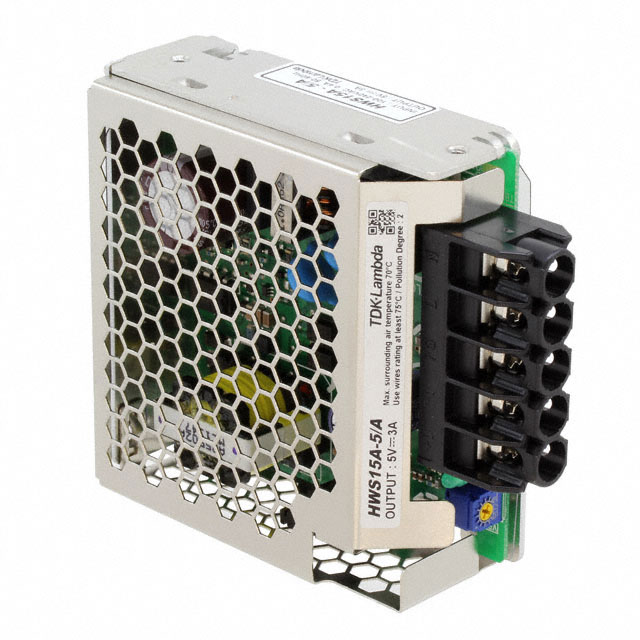

TDK Corporation HWS15A-5/A	5 V	CE	15 W	Enclosed	Industrial ITE (Commercial)	Adjustable Output Universal Input	77 %	3000 V	3 A	1	31.5 mm	1.24 in	82 mm	80 mm	3.23 in	3.15 "	70 °C	-10 °C	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount

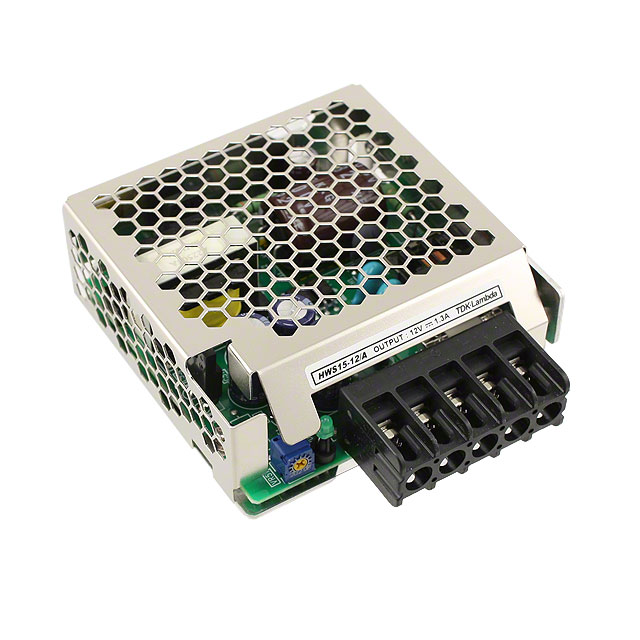

TDK Corporation HWS15A-12/A	12 V	CE	15 W	Enclosed	Industrial ITE (Commercial)	Adjustable Output Universal Input	81 %	3000 V	1.3 A	1	31.5 mm	1.24 in	82 mm	80 mm	3.23 in	3.15 "	70 °C	-10 °C	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount
