M830510 Series

Catalog

EVAL BOARD FOR M830510

Part	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Type	Contents	Frequency [Min]	Frequency [Max]	Applications	Height (Max) [Max] [z]	Height (Max) [z]	VSWR [x]	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Termination	Number of Bands	Gain	Frequency Group	Antenna Type	RF Family/Standard

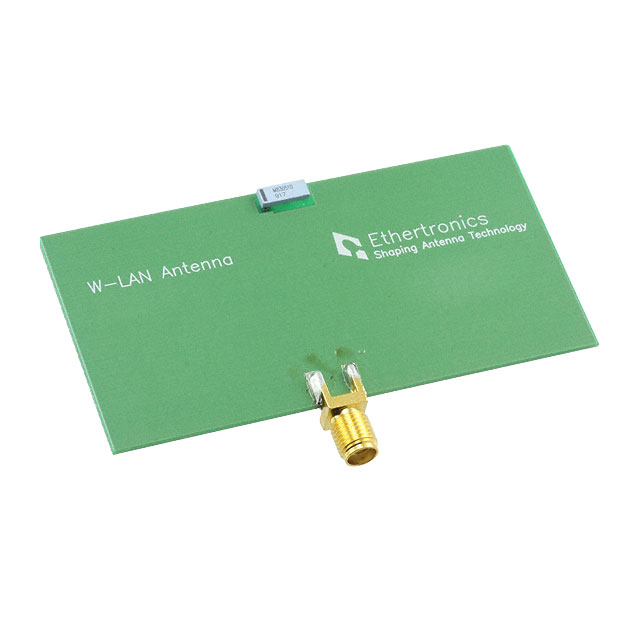

KYOCERA AVX M830510-01	M830510	Board(s)	M830510	Antenna	Board(s)	2.4 GHz 4.9 GHz	2.5 GHz 5.8 GHz
KYOCERA AVX M830510-10K								Bluetooth Wi-Fi WLAN Zigbee™	0.052 in	1.33 mm	2.6 3	2.5 GHz 5.8 GHz	2.4 GHz 4.9 GHz	Surface Mount	Solder	2	1.1 dBi 3.2 dBi	SHF UHF	Chip	802.15.4 Bluetooth WiFi

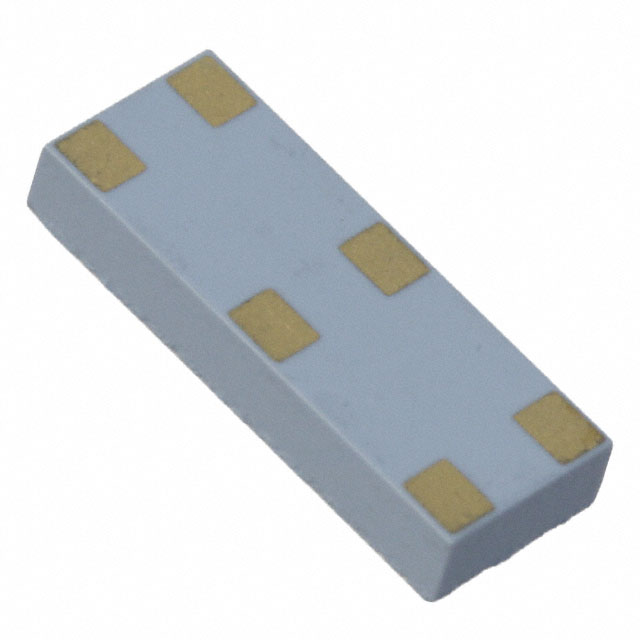

KYOCERA AVX M830510								Bluetooth Wi-Fi WLAN Zigbee™	0.052 in	1.33 mm	2.6 3	2.5 GHz 5.8 GHz	2.4 GHz 4.9 GHz	Surface Mount	Solder	2	1.1 dBi 3.2 dBi	SHF UHF	Chip	802.15.4 Bluetooth WiFi
