745-122 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 122 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Read Out	Pitch	Pitch	Card Type	Termination	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Gender	Mounting Type	Contact Material	Color	Contact Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]
EDAC Inc. 745-122-520-201	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-560-206	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever Make Before Break	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-522-201	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2

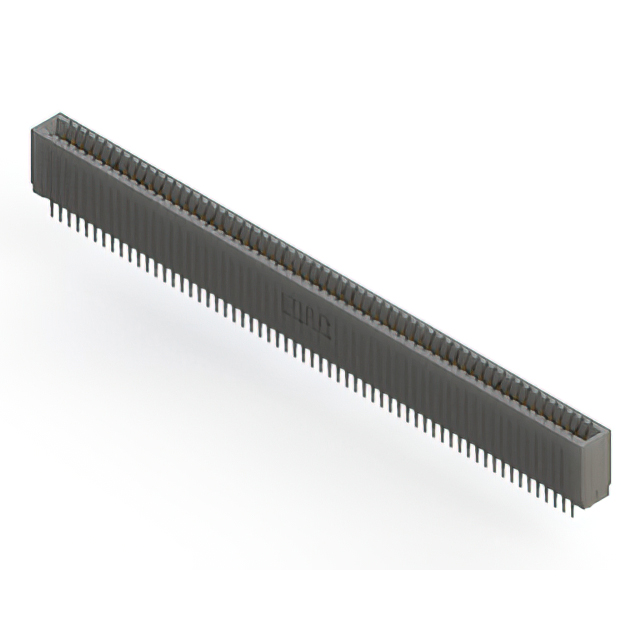

EDAC Inc. 745-122-560-201	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever Make Before Break	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-520-206	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-541-206	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-525-206	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-540-201	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-540-206	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
EDAC Inc. 745-122-541-201	2	Polyester Thermoplastic	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Press-Fit Wire Wrap	61	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	122	Female	Through Hole	Copper Alloy	Black	Cantilever	Gold	-40 C	105 ░C	2
