TZV Series

Manufacturer: Rubycon

Catalog

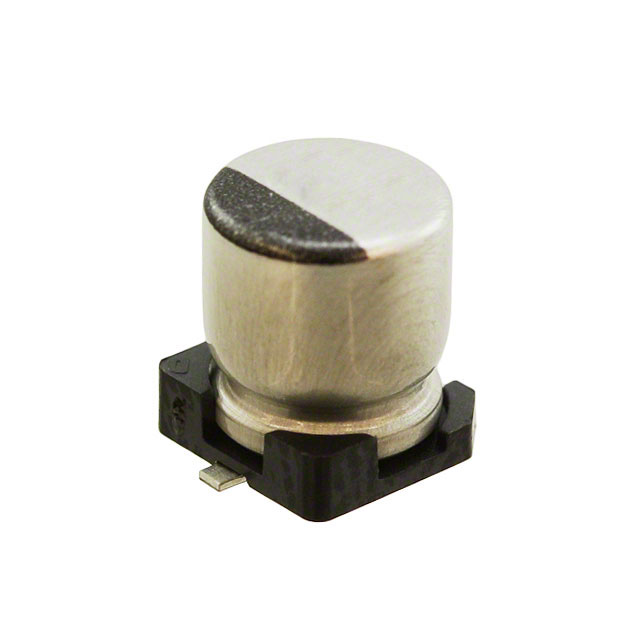

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, TZV SERIES, 4.7 F, 35 V, RADIAL CAN - SMD, 4 MM ROHS COMPLIANT: YES

Part	Ripple Current @ High Frequency	Voltage - Rated	Lifetime @ Temp.	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Package / Case	Tolerance	Mounting Type	Capacitance	Ratings	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 35TZV4R7M4X6.1	90 mA	35 V	2000 Hrs	1.45 Ohms	-55 C	105 ░C	Automotive	6.1 mm	0.24 "	Polar	4 mm	0.157 in	27 mA	Radial Can - SMD	20 %	Surface Mount	4.7 µF	AEC-Q200	4.3 mm	0.169 "	0.169 in	4.3 mm
Rubycon 35TZV22M5X6.1	170 mA	35 V	2000 Hrs	700 mOhms	-55 C	105 ░C	Automotive	6.1 mm	0.24 "	Polar	5 mm	0.197 in	54.4 mA	Radial Can - SMD	20 %	Surface Mount	22 µF	AEC-Q200	0.209 in 5.3 mm			0.209 in 5.3 mm
Rubycon 25TZV220M8X10.5	600 mA	25 VDC	2000 Hrs	0.16 Ohms	-55 C	105 ░C	Automotive			Polar	8 mm	0.315 in	360 mA	Radial Can - SMD	20 %	Surface Mount	220 µF	AEC-Q200	8.3 mm	0.327 in	0.327 in	8.3 mm	0.413 "	10.5 mm
