9 Series
Manufacturer: HARTING
Beta
⌘K
D SUB CONNECTOR, 37 CONTACTS, PLUG, SOLDER CUP, DC, PLASTIC BODY
| Part | Wire Gauge | Voltage Rating | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Features | Flange Feature | Number of Positions | Contact Type | Number of Rows [custom] | Connector Style | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Current Rating (Amps) | Connector Type | Mounting Type | Termination | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 20 AWG | 100 V | Copper Alloy | Natural | -55 C | 125 °C | Polycyclohexylenedimethylene Terephthalate (PCT) | Filter Grounding Indents | Housing/Shell (Unthreaded) | 37 | Signal | 2 | D-Sub | Steel | 4 | DC C | UL94 V-0 | 7.5 A | Plug Male Pins | Free Hanging (In-Line) | ||||
 HARTING | 100 V | Copper Alloy | Natural | -20 ░C | 125 °C | Polycyclohexylenedimethylene Terephthalate (PCT) | Board Lock Filter | Board Side (4-40) | 37 | Signal | 2 | D-Sub | 4 | DC C | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Through Hole | Solder | |||||

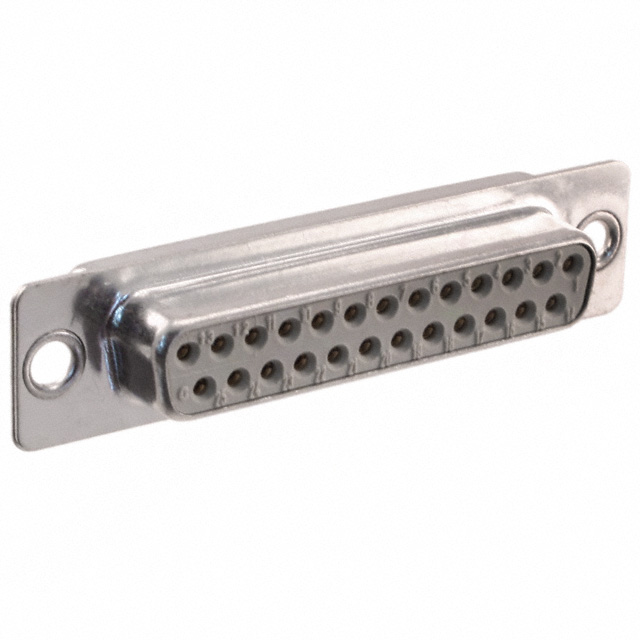

 HARTING | 20 AWG | Copper Alloy | -40 C | 85 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Housing/Shell (Unthreaded) | 25 | Signal | 2 | D-Sub | Steel | B DB | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Free Hanging (In-Line) | 3 | |||||||
 HARTING | 20 AWG | 100 V | Copper Alloy | Natural | -55 C | 125 °C | Polycyclohexylenedimethylene Terephthalate (PCT) | Filter | Cable Side (4-40) | 37 | Signal | 2 | D-Sub | 4 | DC C | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Free Hanging (In-Line) | |||||
 HARTING | Filter Grounding Indents | Housing/Shell (Unthreaded) | 9 | Signal | 2 | D-Sub | Steel | UL94 V-0 | 7.5 A | Plug Male Pins | Through Hole | Solder | 1 | DE E |
