PH Series
Manufacturer: Adam Tech
Beta
⌘K
CIRCUIT BOARD HARDWARE - PCB CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Mating Cycles | Contact Material | Current Rating (Amps) | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Recommended Working Height | Recommended Working Height | Operating Force - Initial | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Fastening Type | Number of Positions | Material Flammability Rating | Connector Type | Shielding | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

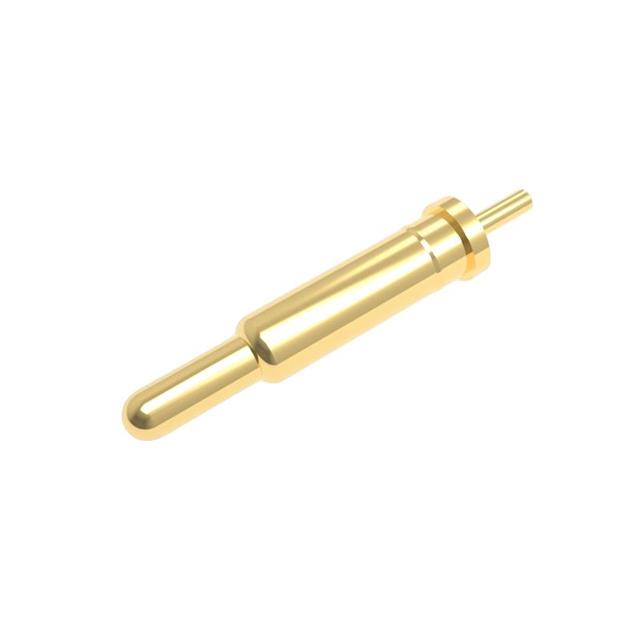

 Adam Tech | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 1 mm | 0.039 in | 0.26 in | 6.6 mm | 1000000 | Brass | 3 A | 1.8 mm | 0.071 in | 0.276 in | 7 mm | 70 gf | Through Hole | 8 mm | 0.315 in | Gold | |||||||||||

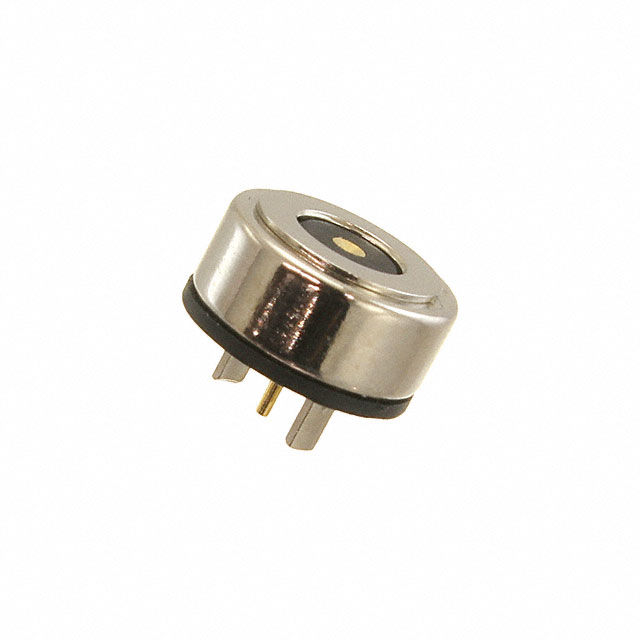

 Adam Tech | 5 A | Through Hole | Thermoplastic | 0.25 µm | 10 µin | Gold | Magnetic | 1 | UL94 V-0 | Jack | Unshielded | Solder | 12 VDC |
