L712A Series

Catalog

DC POWER CONNECTORS PWR JACK SEALED IP68 2.5MM LCKG SOLDER

Part	Includes	Body Material	Thread Size	Contact Material - Plating	Body Color	Contact Material	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Termination	Connector Type	Gender	Current Rating (Amps)	Ingress Protection	Mounting Type	Mounting Feature	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Features	Voltage - Rated	Internal Switch(s)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color

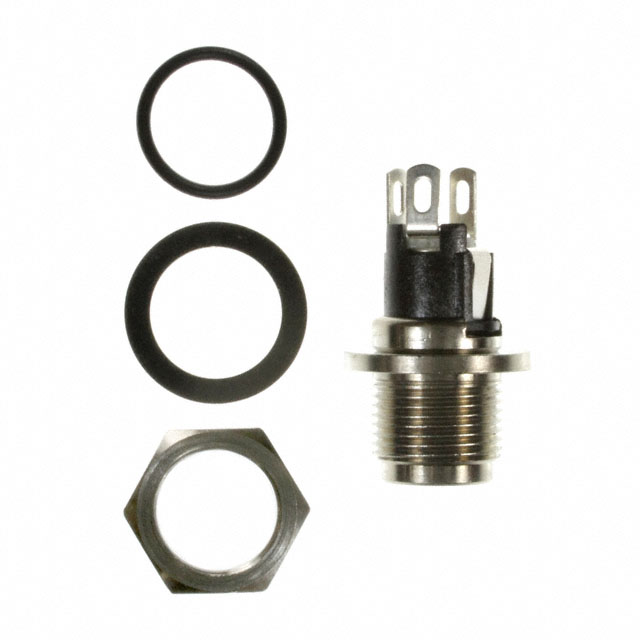

SWITCHCRAFT/CONXALL L712AS	1 Connector 1 Nut 1 O-Ring 1 Washer	Copper Alloy	7/16"-32	Silver	Black Silver	Copper Alloy	Thermoplastic	2	3	Unshielded	Solder Eyelet(s)	Jack	Male	5 A	IP68	Panel Mount	Bulkhead - Front Side Nut	0.098 in	2.5 mm	0.217 in	2.5 mm	5.5 mm	0.098 in	Mounting Hardware Thread Lock	30 V	Single Switch Normally Closed
SWITCHCRAFT/CONXALL L712AH	1 Nut 1 Washer 3 pcs - 1 Connector	Copper Alloy	5/16"-32	Silver	Silver White	Copper Alloy	Thermoplastic	2	3	Unshielded	Solder Eyelet(s)	Jack	Male			Through Hole		0.098 in	2.5 mm							Single Switch	2.5 mm	0.098 "
SWITCHCRAFT/CONXALL L712AC		Copper Alloy		Tin	Black Silver	Copper Alloy	Thermoplastic	2	3	Unshielded	Solder Eyelet(s)	Jack	Male	5 A		Free Hanging (In-Line)		0.098 in	2.5 mm						24 VDC		2.5 mm	0.098 "	-40 C	105 ░C	Black
SWITCHCRAFT/CONXALL L712ACF		Copper Alloy		Tin	Black Silver	Copper Alloy	Thermoplastic	2	3	Unshielded	Solder Eyelet(s)	Jack	Male	5 A		Free Hanging (In-Line)		0.098 in	2.5 mm					Strain Relief	24 VDC		2.5 mm	0.098 "	-40 C	105 ░C	Black
