KSJ0M4 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Mounting Type	Actuator Height off PCB, Vertical [z]	Actuator Type	Termination Style	Circuit	Illumination	Switch Function	Switch Travel	Ingress Protection	Mechanical Life	Outline [x]	Outline [y]	Operating Force	Actuator Height off PCB, Vertical

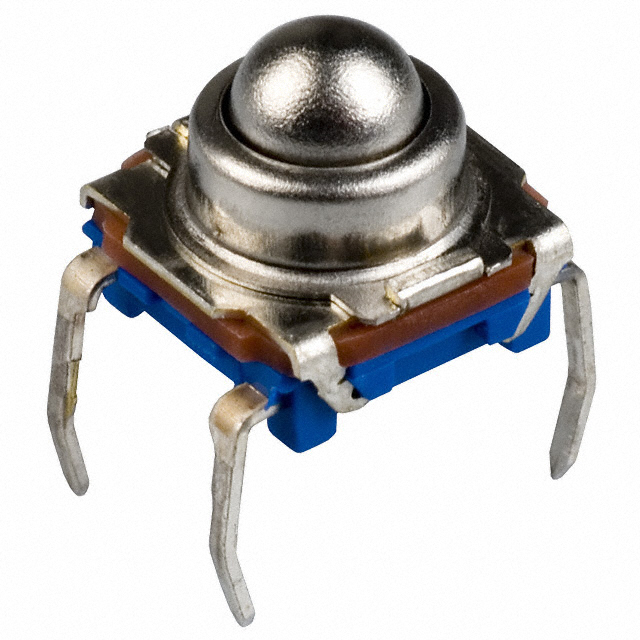

Littelfuse/Commercial Vehicle Products KSJ0M431 80SH LFGR	Top Actuated	125 °C	-40 °C	0.01 A 32 VDC	Through Hole	6.57 mm	Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP60	100000 Cycles	7.4 mm	7.3 mm	300 gf
Littelfuse/Commercial Vehicle Products KSJ0M411 80SH LFTR	Top Actuated	85 °C	-40 °C	0.05 A	Through Hole	6.57 mm	Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP60	100000 Cycles	7.4 mm	7.3 mm	300 gf
Littelfuse/Commercial Vehicle Products KSJ0M431 80SH LFTR	Top Actuated	125 °C	-40 °C	0.01 A 32 VDC	Through Hole	6.57 mm	Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP60	100000 Cycles	7.4 mm	7.3 mm	300 gf
Littelfuse/Commercial Vehicle Products KSJ0M410	Top Actuated	90 °C	-40 °C	0.05 A	Through Hole		Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP40	100000 Cycles	7.4 mm	7.4 mm	300 gf	6.65 mm

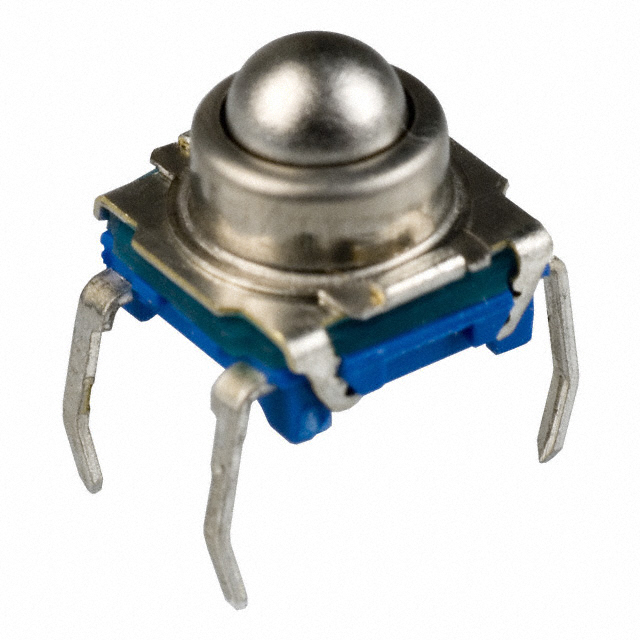

Littelfuse/Commercial Vehicle Products KSJ0M41180SH LFT	Top Actuated	90 °C	-40 °C	0.05 A	Through Hole		Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP60	100000 Cycles	7.4 mm	7.4 mm	300 gf	6.65 mm
Littelfuse/Commercial Vehicle Products KSJ0M411LFT	Top Actuated	90 °C	-40 °C	0.05 A	Through Hole		Spherical	PC Pin	SPST-NO	Non-Illuminated	Off-Mom	0.55 mm	IP60	100000 Cycles	7.4 mm	7.4 mm	300 gf	6.65 mm
