Accu-P Std Series

Catalog

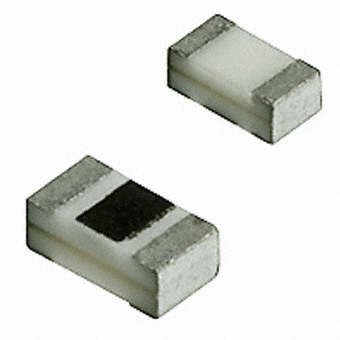

SILICON RF CAPACITORS / THIN FILM 50V 2PF .05PFTOL THI NFILM 0603

...

Part	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case
KYOCERA AVX 06035J2R0ABSTR
KYOCERA AVX 12101K360JBTTR
KYOCERA AVX 08051J1R2ABTTR	High Q Low Loss RF	1.27 mm	2 mm	0.079 in	0.05 in	0.044 in	1.13 mm	100 V	-55 C	125 °C	0.05 pF	Surface Mount	1.2 pF	0805

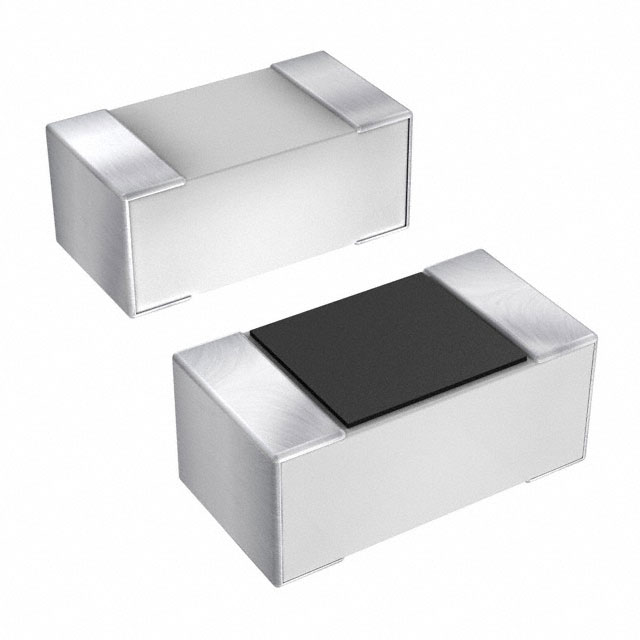

KYOCERA AVX 04023J1R2QBWTR	High Q Low Loss RF	0.55 mm	1 mm	0.039 "	0.022 in			25 VDC	-55 C	125 °C	0.03 pF	Surface Mount	1.2 pF	0402 (1005 Metric)	0.02 in	0.5 mm
KYOCERA AVX 04023JR35PBWTR	High Q Low Loss RF	0.55 mm	1 mm	0.039 "	0.022 in			25 VDC	-55 C	125 °C	0.02 pF	Surface Mount	0.35 pF	0402 (1005 Metric)	0.02 in	0.5 mm
KYOCERA AVX 06035J150GBSTR	High Q Low Loss RF	0.81 mm	1.6 mm	0.063 "	0.032 in		0.73 mm	50 VDC	-55 C	125 °C	2 %	Surface Mount	15 pF	0603	0.029 in		1608 Metric
KYOCERA AVX 12105J820FBTTR
KYOCERA AVX 04023JR45ZBSTR
KYOCERA AVX 08051K0R2ABTTR	High Q Low Loss RF	1.27 mm	2 mm	0.079 in	0.05 in	0.044 in	1.13 mm	100 V	-55 C	125 °C	0.05 pF	Surface Mount	0.2 pF	0805
KYOCERA AVX 12105J2R5ABTTR	High Q Low Loss RF	2.5 mm	3.02 mm	0.119 "	0.098 in	0.044 in	1.13 mm	50 VDC	-55 C	125 °C	0.05 pF	Surface Mount	2.5 pF	1210			3225 Metric
