M2012EA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Bushing Thread	Features	Actuator Type	Illumination	Voltage Rating - AC	Actuator Length [x]	Termination Style	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Switch Function	Circuit
NKK Switches M2012EA1W15	Brass Chrome Plated	25000 Steps	1/4-40	Epoxy Sealed Terminals	Flatted	Non-Illuminated	125 V	13.21 mm	PC Pin	30 V	Panel Mount	4 A 6 A	85 °C	-30 ░C	6.5 mm	On-On	SPDT

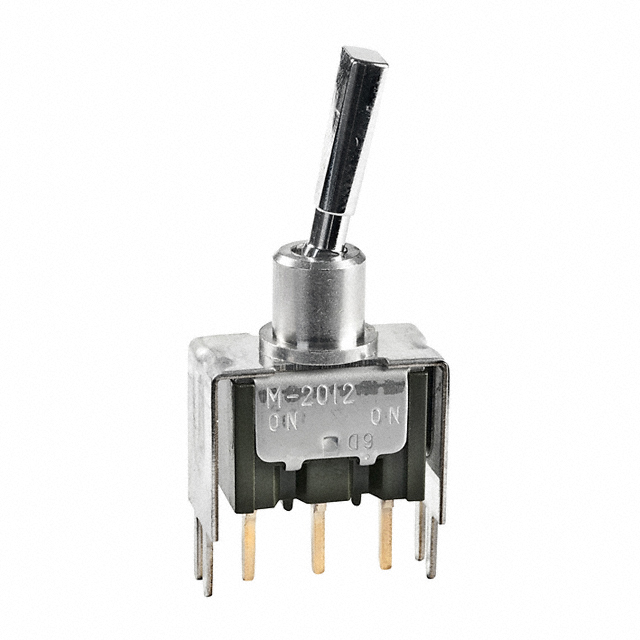

NKK Switches M2012EA2G13	Brass Chrome Plated	50000 Cycles	Unthreaded	Epoxy Sealed Terminals	Flatted	Non-Illuminated	28 V	13.21 mm	PC Pin	28 V	Through Hole	0.4 VA	85 °C	-30 ░C		On-On	SPDT
NKK Switches M2012EA1W13	Brass Chrome Plated	25000 Steps	1/4-40	Epoxy Sealed Terminals	Flatted	Non-Illuminated	125 V	13.21 mm	PC Pin	30 V	Panel Mount	4 A 6 A	85 °C	-30 ░C	6.5 mm	On-On	SPDT
