H659 Series

Manufacturer: Serpac

Catalog

BOX ABS TRN GRAY 4.94"L X 2.75"W

Part	Weight	Weight	Material	Color	Area (L x W)	Area (L x W)	Container Type	Ratings	Features	Features	Height	Height	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Thickness	Thickness

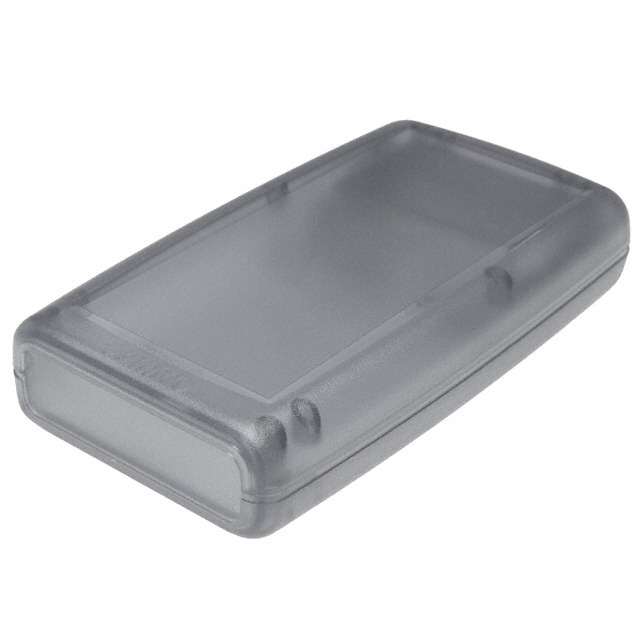

Serpac H659V,TRGY	0.11 lb	49.9 g	ABS Plastic	Translucent - Gray	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

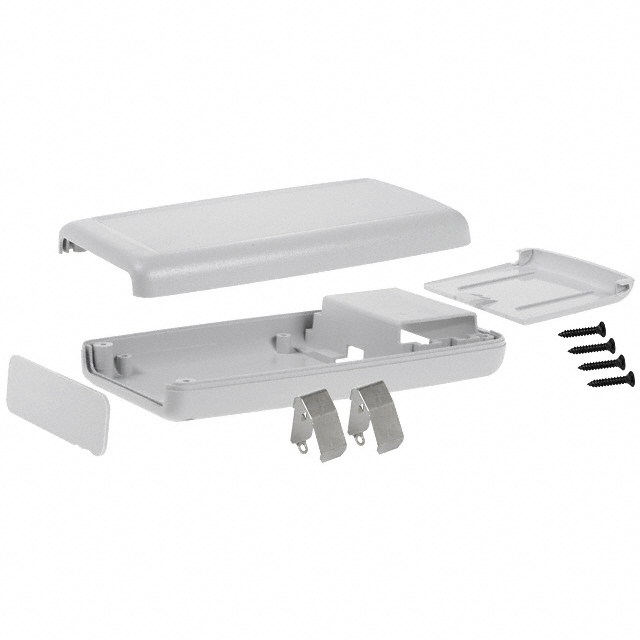

Serpac H659V,GY	0.11 lb	49.9 g	ABS Plastic	Gray	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

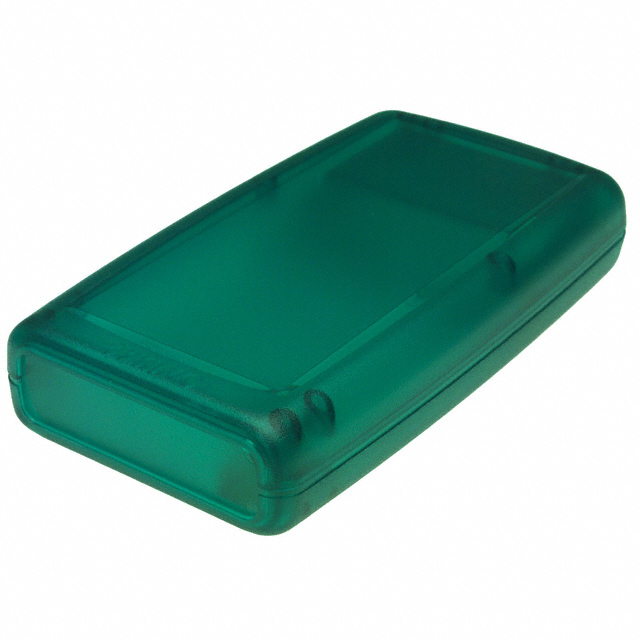

Serpac H659V,TRGR	0.11 lb	49.9 g	ABS Plastic	Translucent - Green	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

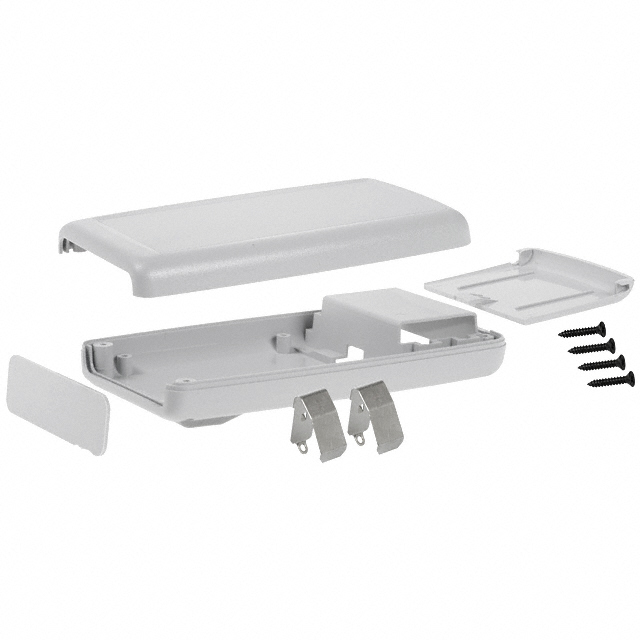

Serpac H659VPC,GY	0.117 lb	53.07 g	ABS Plastic	Gray	13.6 in˛	88 cm²	Box	IP40	9V Battery Compartment PCB Supports Pocket Clip		23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

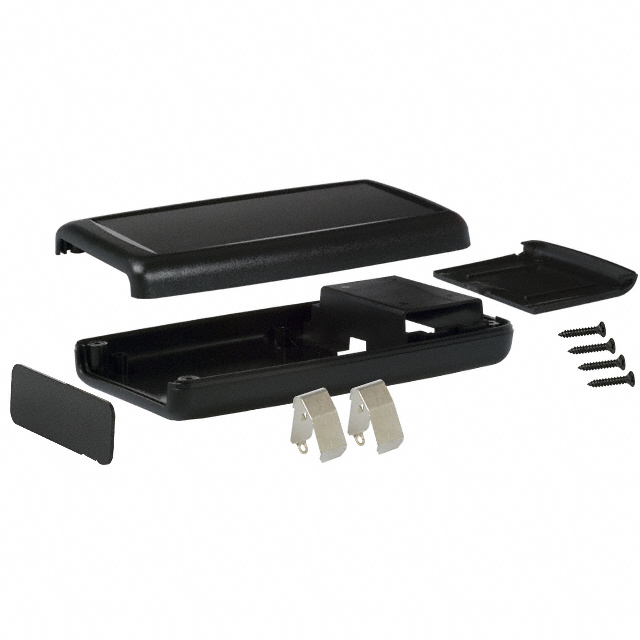

Serpac H659V,BK	0.11 lb	49.9 g	ABS Plastic	Black	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm
Serpac H659VPC,TRGR	0.117 lb	53.07 g	ABS Plastic	Translucent - Green	13.6 in˛	88 cm²	Box	IP40	9V Battery Compartment PCB Supports Pocket Clip		23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

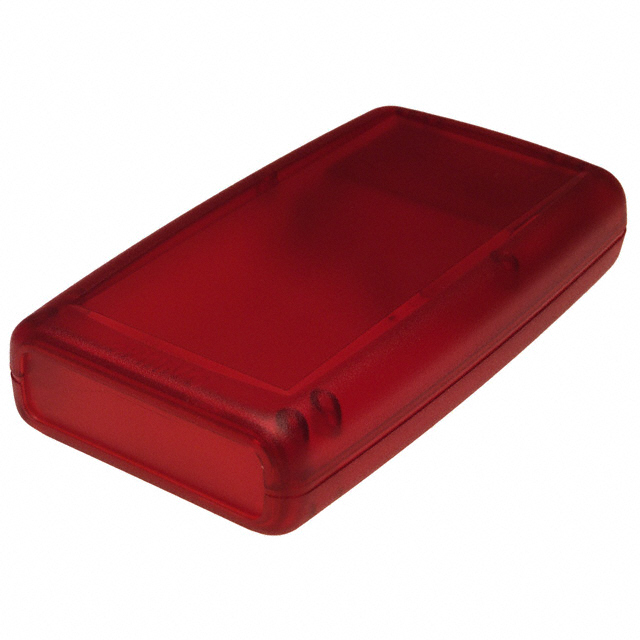

Serpac H659V,TRRD	0.11 lb	49.9 g	ABS Plastic	Translucent - Red	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

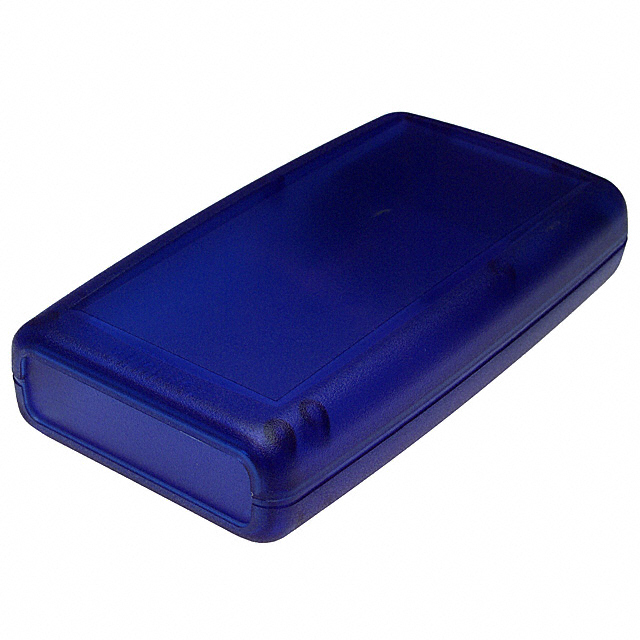

Serpac H659V,TRBL	0.11 lb	49.9 g	ABS Plastic	Translucent - Blue	13.6 in˛	88 cm²	Box	IP40	Battery Compartment PCB Supports	9 V	23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

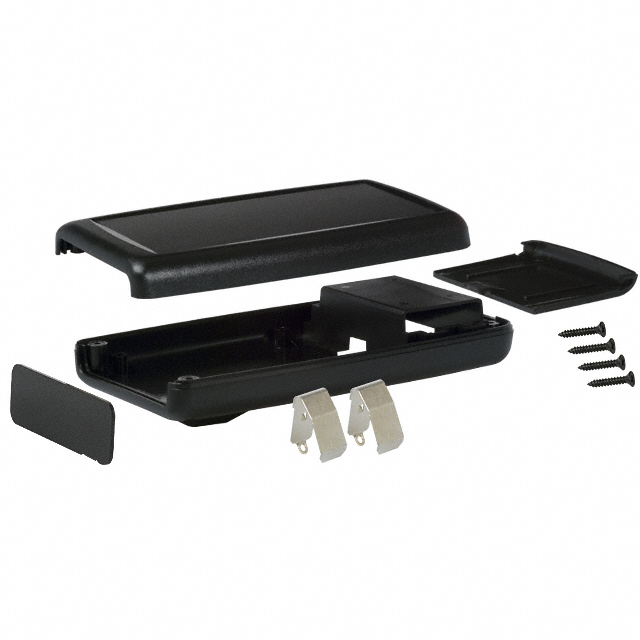

Serpac H659VPC,BK	0.117 lb	53.07 g	ABS Plastic	Black	13.6 in˛	88 cm²	Box	IP40	9V Battery Compartment PCB Supports Pocket Clip		23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm

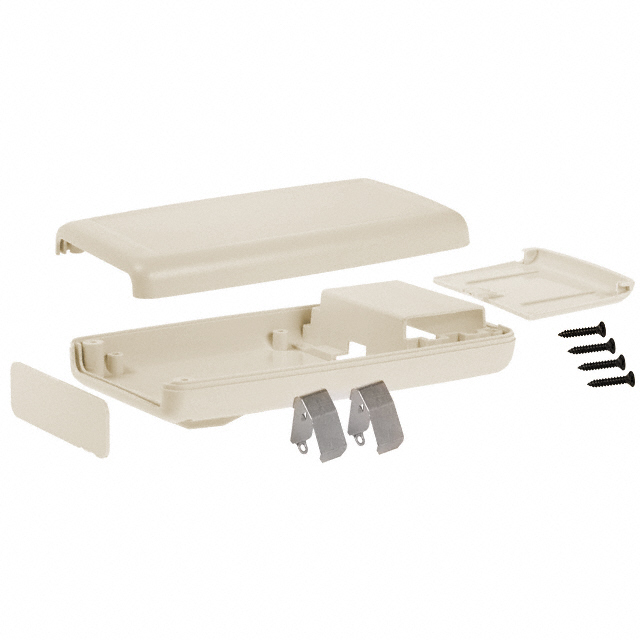

Serpac H659VPC,AL	0.117 lb	53.07 g	ABS Plastic	Almond	13.6 in˛	88 cm²	Box	IP40	9V Battery Compartment PCB Supports Pocket Clip		23.88 mm	0.94 in	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	0.08 in	2.03 mm
