FDL-65 Series

Catalog

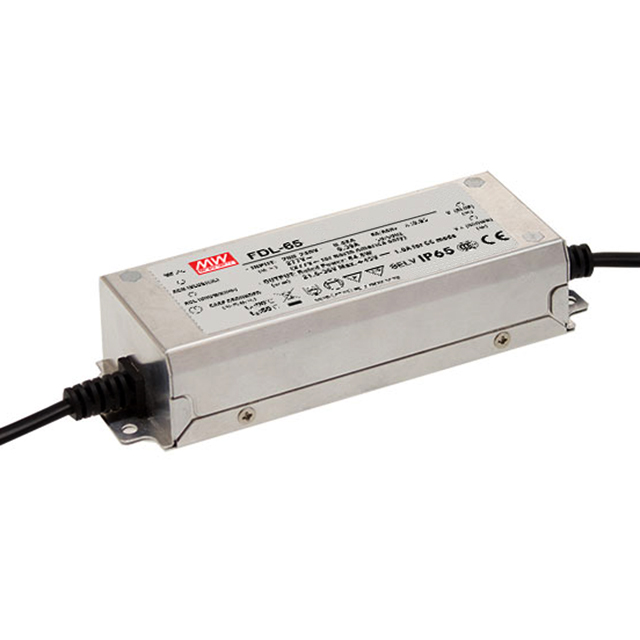

LED DRVR CC AC/DC 25.2-42V 1.55A

Part	Mounting Type	Type	Topology	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features	Ratings	Number of Outputs	Power (Watts)	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Input (Min) [Min]
MEAN WELL USA Inc. FDL-65-1550	Chassis Mount	Constant Current	AC DC Converter	1.55 A	295 VAC	5 "	53 mm	127 mm	1.24 "	31.5 mm	2.09 "	OTP OVP SCP	IP65	1	65 W	90 %	42 V	25.2	3750 VDC	90 °C	-40 C	Wire Leads	180 VAC
MEAN WELL USA Inc. FDL-65-1800	Chassis Mount	Constant Current	AC DC Converter	1.8 A	295 VAC	5 "	53 mm	127 mm	1.24 "	31.5 mm	2.09 "	OTP OVP SCP	IP65	1	65 W	90 %	36 V	21.6 V	3750 VDC	90 °C	-40 C	Wire Leads	180 VAC
