ALZ52B Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GEN PURPOSE SPST 16A 18V

Part	Coil Resistance	Termination Style	Coil Type	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Mounting Type	Coil Insulation	Contact Form	Coil Voltage	Must Operate Voltage	Contact Material	Operate Time	Approval Agency	Must Release Voltage	Relay Type	Release Time	Load - Max Switching [Max]	Contact Rating (Current)	Switching Voltage [Max]
Panasonic Electronic Components ALZ52B18TW	810 Ohms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	22.2 mA	Through Hole	Class B	SPST-NO (1 Form A)	18 VDC	12.6 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	1.8 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC

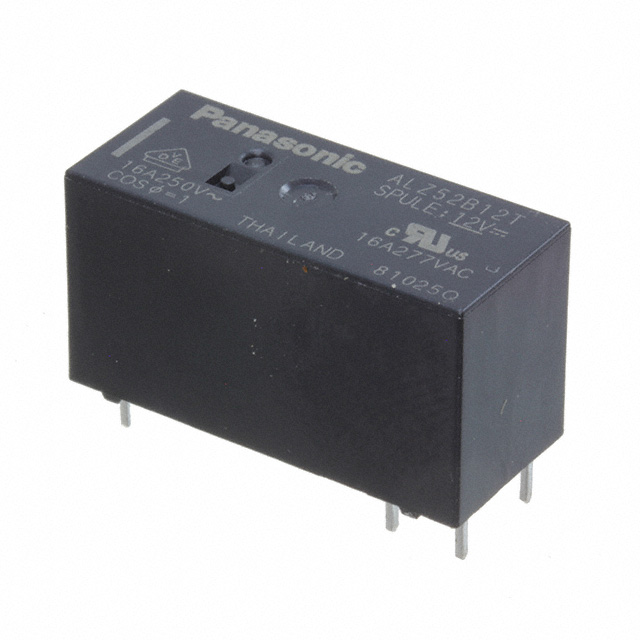

Panasonic Electronic Components ALZ52B12T	360 Ohms	PC Pin	Non Latching	Sealed - Fully	105 ░C	-40 C	33.3 mA	Through Hole	Class B	SPST-NO (1 Form A)	12 VDC	8.4 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	1.2 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B18	810 Ohms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	22.2 mA	Through Hole	Class B	SPST-NO (1 Form A)	18 VDC	12.6 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	1.8 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B05W	63 Ohms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	80 mA	Through Hole	Class B	SPST-NO (1 Form A)	5 VDC	3.5 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	0.5 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B12W	360 Ohms	PC Pin	Non Latching	Sealed - Fully	105 ░C	-40 C	33.3 mA	Through Hole	Class B	SPST-NO (1 Form A)	12 VDC	8.4 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	1.2 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B24W	1440 Ohms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	16.7 mA	Through Hole	Class B	SPST-NO (1 Form A)	24 VDC	16.8 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	2.4 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B09T	203 Ohms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	44.4 mA	Through Hole	Class B	SPST-NO (1 Form A)	9 VDC	6.3 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	0.9 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B24	1440 Ohms	PC Pin	Non Latching	Sealed - Fully	105 ░C	-40 C	16.7 mA	Through Hole	Class B	SPST-NO (1 Form A)	24 VDC	16.8 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	2.4 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
Panasonic Electronic Components ALZ52B48T	5.76 kOhms	PC Pin	Non Latching	Sealed - Fully	85 °C	-40 C	8.3 mA	Through Hole	Class B	SPST-NO (1 Form A)	48 VDC	33.6 VDC	Silver Tin Oxide (AgSnO)	15 ms	cURus VDE	4.8 VDC	General Purpose	5 ms	7040 VA	16 A	440 VAC
