1569-18 Series

Manufacturer: CNC Tech

Catalog

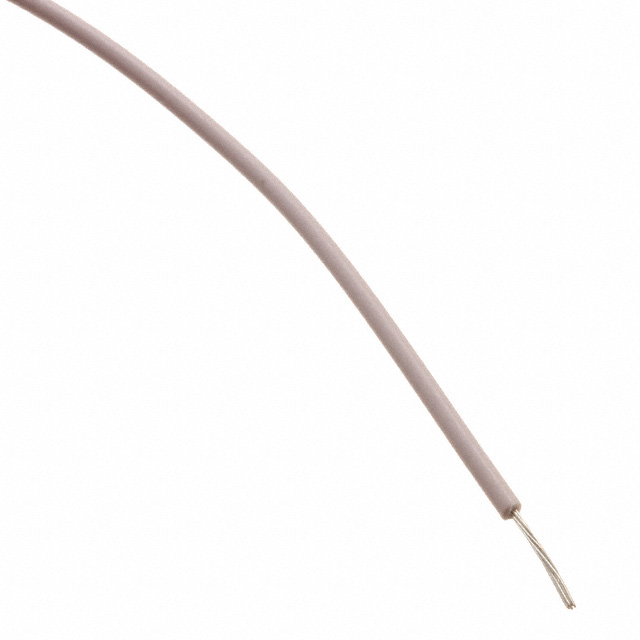

HOOK-UP STRND 18AWG WHT 500'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Features	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [diameter]	Conductor Strand [custom]	Conductor Material	Spool Size [x]	Spool Size [x]	Length
CNC Tech 1569-18-1-0500-002-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	White	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-005-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Blue	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-003-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Yellow	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-006-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Brown	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-007-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Green	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-011-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Green Yellow	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned	500 ft	152.4 m	Enter Number of Feet in Order Quantity
CNC Tech 1569-18-1-0500-008-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Orange	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-004-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Red	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-010-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Violet	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
CNC Tech 1569-18-1-0500-001-1-TS	-10 °C	105 ░C	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	18 AWG	Black	Oil Resistant	7.62 m 30.5 m	25 ft 100 ft	0.083 in	2.11 mm	300 VDC	Hook-Up	0.38 mm	0.015 in	0.0071 in	34 Strands	Copper Tinned
