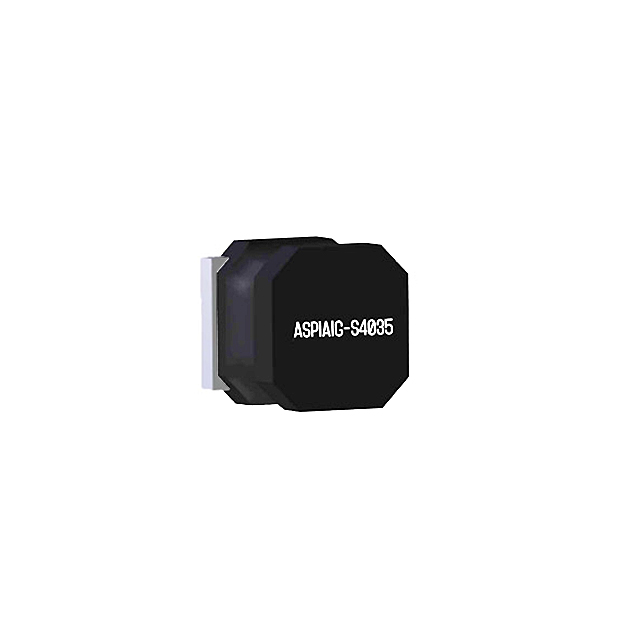

ASPIAIG-S Series

Catalog

FIXED IND 1.2UH 4.2A 28MOHM SMD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Package / Case	Ratings	Tolerance	Supplier Device Package	DC Resistance (DCR)	Current Rating (Amps)	Inductance	Type	Current - Saturation (Isat)	Shielding	Mounting Type	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core
Abracon LLC ASPIAIG-S4035-1R2M-T	0.157 "	4 mm	0.157 in	4 mm	3.7 mm	0.146 in	125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %	4035	28 mOhm	4.2 A	1.2 µH	Wirewound	6.7 A	Shielded	Surface Mount
Abracon LLC ASPIAIG-S8050-6R8M-T	0.315 in	8 mm	0.315 in	8 mm			125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %		29 mOhm	4.2 A	6.8 µH	Drum Core Wirewound	6.1 A	Shielded	Surface Mount	19 MHz	0.205 in	5.2 mm	Nickel Zinc Ferrite (NiZn)
Abracon LLC ASPIAIG-S4035-330M-T	0.157 "	4 mm	0.157 in	4 mm	3.7 mm	0.146 in	125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %	4035	420 mOhm	1.05 A	33 µH	Wirewound	1.3 A	Shielded	Surface Mount	10 MHz
Abracon LLC ASPIAIG-S8050-1R5M-T	0.315 in	8 mm	0.315 in	8 mm			125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %		12 mOhm	6.5 A	1.5 µH	Drum Core Wirewound	13 A	Shielded	Surface Mount	79 MHz	0.205 in	5.2 mm	Nickel Zinc Ferrite (NiZn)
Abracon LLC ASPIAIG-S8050-8R2M-T	0.315 in	8 mm	0.315 in	8 mm			125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %		35 mOhm	3.8 A	8.2 µH	Drum Core Wirewound	5.6 A	Shielded	Surface Mount	18 MHz	0.205 in	5.2 mm	Nickel Zinc Ferrite (NiZn)
Abracon LLC ASPIAIG-S6055-680M-T	0.236 "	6 mm	0.236 in	6 mm			125 °C	-40 C	100 kHz	Nonstandard	AEC-Q200	20 %		353 mOhm	1.25 A	68 µH	Drum Core Wirewound	1.4 A	Shielded	Surface Mount	6.4 MHz	0.224 in	5.7 mm	Nickel Zinc Ferrite (NiZn)
