085510 Series
Manufacturer: Molex
Beta
⌘K

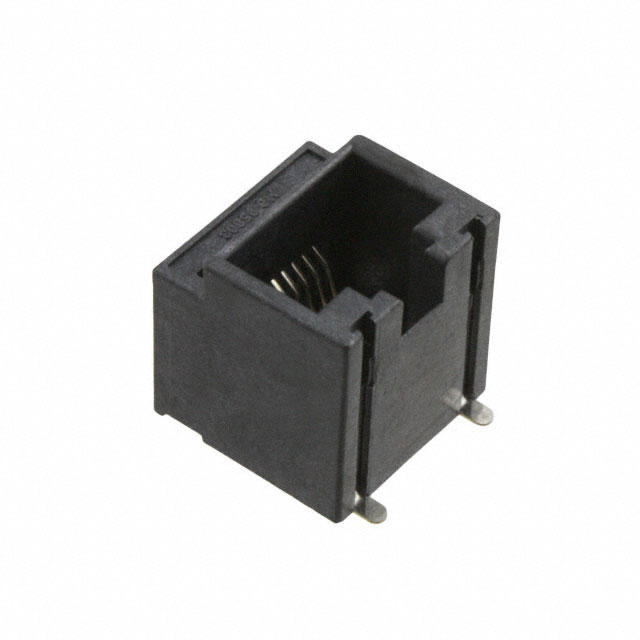

CONN MOD JACK 6P4C VERT UNSHLD
| Part | Mounting Type | Contact Finish Thickness | Contact Material | Connector Type | Number of Rows | Features | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Number of Ports | Shielding | Contact Finish | Ratings | Number of Positions/Contacts | LED Color | Tab Direction | Termination | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Surface Mount | Flash | Copper Alloy | Jack | 1 | Solder Retention | 85 °C | -40 °C | Vertical | 1 | Unshielded | Gold | Cat3 | 6p4c | Does Not Contain LED | User Selectable | Solder | Liquid Crystal Polymer (LCP) Glass Filled |
 Molex | Surface Mount | Flash | Copper Alloy | Jack | 1 | Solder Retention | Vertical | 1 | Unshielded | Gold | Cat3 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | User Selectable | Solder | Liquid Crystal Polymer (LCP) Glass Filled | ||
Molex | ||||||||||||||||||
 Molex | Surface Mount | Flash | Copper Alloy | Jack | 1 | Pick and Place Cap Solder Retention | 85 °C | -40 °C | Vertical | 1 | Unshielded | Gold | Cat3 | 6p4c | Does Not Contain LED | User Selectable | Solder | Liquid Crystal Polymer (LCP) Glass Filled |
 Molex | Surface Mount | Flash | Copper Alloy | Jack | 1 | Pick and Place Cap Solder Retention | 85 °C | -40 °C | Vertical | 1 | Unshielded | Gold | Cat3 | 4p4c | Does Not Contain LED | User Selectable | Solder | Liquid Crystal Polymer (LCP) Glass Filled |
Molex | ||||||||||||||||||
Molex | Surface Mount | Flash | Copper Alloy | Jack | 1 | Pick and Place Cap Solder Retention | 85 °C | -40 °C | Vertical | 1 | Unshielded | Gold | Cat3 | 4p4c | Does Not Contain LED | User Selectable | Solder | Liquid Crystal Polymer (LCP) Glass Filled |
Molex |
