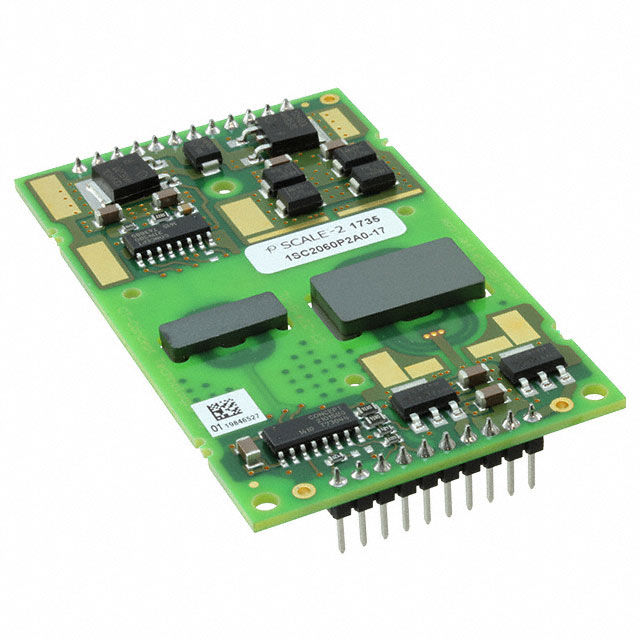

1SC2060 Series
Manufacturer: POWER INTEGRATIONS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: NO
| Part | Gate Type | Rise Time (Typ) | Fall Time (Typ) | Driven Configuration | Number of Drivers | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Current - Peak Output (Sink) | Current - Peak Output (Source) | Package Name | Gate Channel | Channel Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | IGBT MOSFET N-Channel P-Channel MOSFET | 10 ns | 15 ns | High-Side Low-Side | 1 | 85 °C | -40 °C | Module | 60 A | 60 A | Module | N-Channel P-Channel | Single | 14.5 V | 15.5 V | Surface Mount |
