1462037 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SIGNAL RELAY 24VDC 2A DPDT( (10MM 7.5MM 5.65MM)) SMD MEDICAL

Part	Coil Resistance	Contact Rating (Current)	Contact Form	Switching Voltage [Max]	Relay Type	Mounting Type	Operate Time	Contact Material	Release Time	Load - Max Switching	Seal Rating	Must Operate Voltage	Coil Current	Coil Voltage	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]

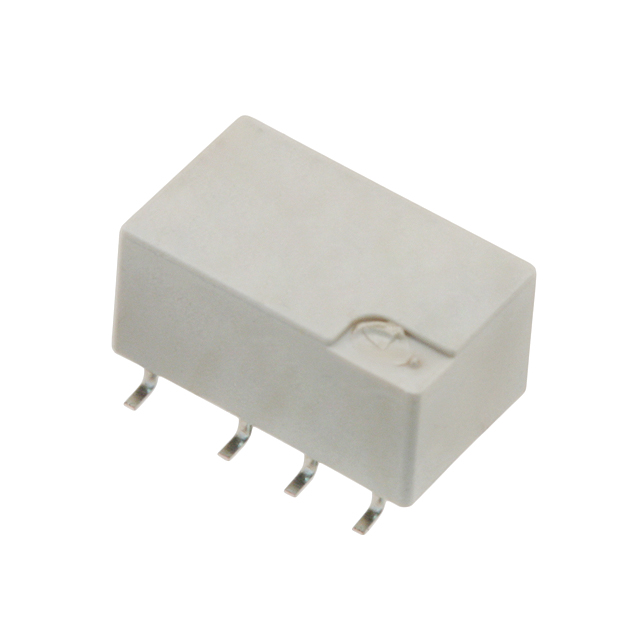

TE Connectivity AMP Connectors 7-1462037-0	2.88 kOhms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Surface Mount	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	18 VDC	8.3 mA	24 VDC	Latching Single Coil	Gull Wing	85 °C	-40 C
TE Connectivity AMP Connectors 5-1462037-4	90 Ohms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Surface Mount	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	2.25 VDC	33.3 mA		Latching Single Coil	Gull Wing	85 °C	-40 C

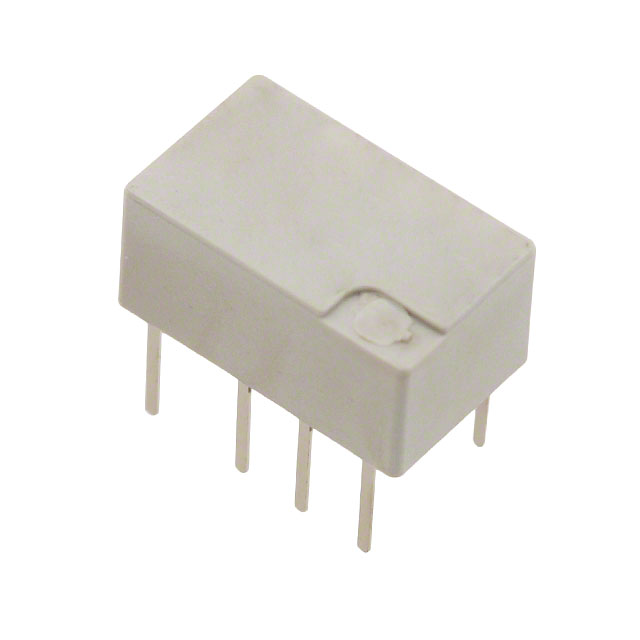

TE Connectivity AMP Connectors 5-1462037-3	90 Ohms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Through Hole	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	2.25 VDC	33.3 mA		Latching Single Coil	PC Pin	85 °C	-40 C
TE Connectivity AMP Connectors 6-1462037-1	360 Ohms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Through Hole	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	4.5 VDC	16.7 mA		Latching Single Coil	PC Pin	85 °C	-40 C
TE Connectivity AMP Connectors 5-1462037-9	250 Ohms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Surface Mount	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	3.75 VDC	0.02 A	5 VDC	Latching Single Coil	Gull Wing	85 °C	-40 C
TE Connectivity AMP Connectors 5-1462037-3
TE Connectivity AMP Connectors 6-1462037-2	360 Ohms	2 A	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	Surface Mount	3 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	3 ms	440 W 500 VA	Sealed - Hermetically	4.5 VDC	16.7 mA		Latching Single Coil	Gull Wing	85 °C	-40 C
