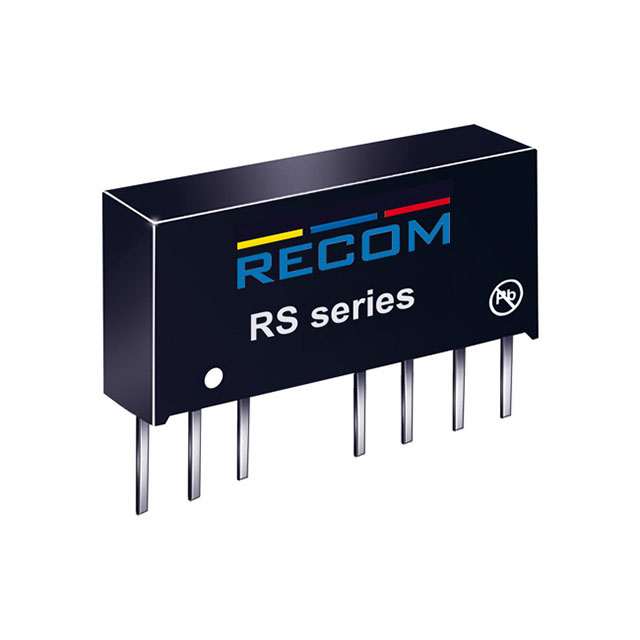

RS-S_D(Z) Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 3KV REG 4:1 18-72VIN +/-3.3VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Features	Package / Case	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Voltage - Output 2	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max)

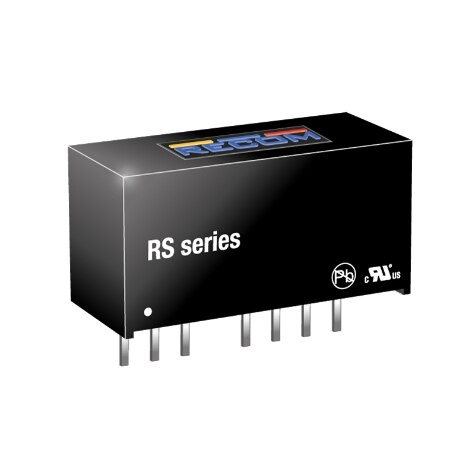

Recom Power RS-483.3DZ/H3	85 °C	-40 C	Active Low Enable	Isolated Module	18 V	3.3 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	73 %	72 V	Through Hole	250 mA	-3.3 V	3000 V
Recom Power RS-1209D/H3	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	9 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	78 %	18 V	Through Hole	111 mA	-9 V	3000 V
Recom Power RS-2405DZ/H3	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	5 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	77 %	36 V	Through Hole		-5 V	3000 V
Recom Power RS-123.3S/H2	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	3.3 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	69 %	18 V	Through Hole			2000 V	500 mA
Recom Power RS-0505D	85 °C	-45 °C	Active Low Enable	Isolated Module	4.5 V	5 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	75 %	9 V	Through Hole		-5 V	1000 V
Recom Power RS-0505S/H3	85 °C	-40 C	Active Low Enable	Isolated Module	4.5 V	5 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	75 %	9 V	Through Hole			3000 V	400 mA
Recom Power RS-2415SZ	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	15 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	84 %	36 V	Through Hole			1000 V	134 mA
Recom Power RS-1212D/H2	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	12 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	80 %	18 V	Through Hole	83 mA	-12 V	2000 V		83 mA
Recom Power RS-4809D/H2	85 °C	-40 C	Active Low Enable	Isolated Module	36 V	9 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	2	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	81 %	72 V	Through Hole	111 mA	-9 V	2000 V
Recom Power RS-1215S/H2	85 °C	-40 C	Active Low Enable	Isolated Module	9 V	15 V	2 W	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial) Medical	1	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	80 %	18 V	Through Hole			2000 V	134 mA
