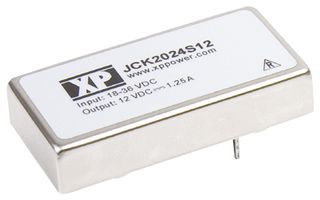

JCK2012 Series
Manufacturer: XP Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, 2:1 INPUT, ITE, 2:1, 20 W, 1 OUTPUT, 15 V, 1.33 A
| Part | Number of Outputs | Features | Size / Dimension | Voltage - Input (Min) [Min] | Applications | Package / Case | Power (Watts) | Mounting Type | Control Features | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 1 | OCP OVP Remote On/Off SCP UVLO | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | ITE (Commercial) | 6-DIP Module | 20 W | Through Hole | Active High Enable | Isolated Module | -40 C | 100 °C | 15 V | 1.6 kV | 1.33 A | 18 V | 90 % |
 XP Power | 1 | OCP OVP Remote On/Off SCP UVLO | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | ITE (Commercial) | 6-DIP Module | 20 W | Through Hole | Active High Enable | Isolated Module | -40 C | 100 °C | 3.3 V | 1.6 kV | 5.5 A | 18 V | 90 % |
XP Power | 1 | OCP OVP Remote On/Off SCP UVLO | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | ITE (Commercial) | 6-DIP Module | 20 W | Through Hole | Active High Enable | Isolated Module | -40 C | 100 °C | 5 V | 1.6 kV | 4 A | 18 V | 92 % |
