79250 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

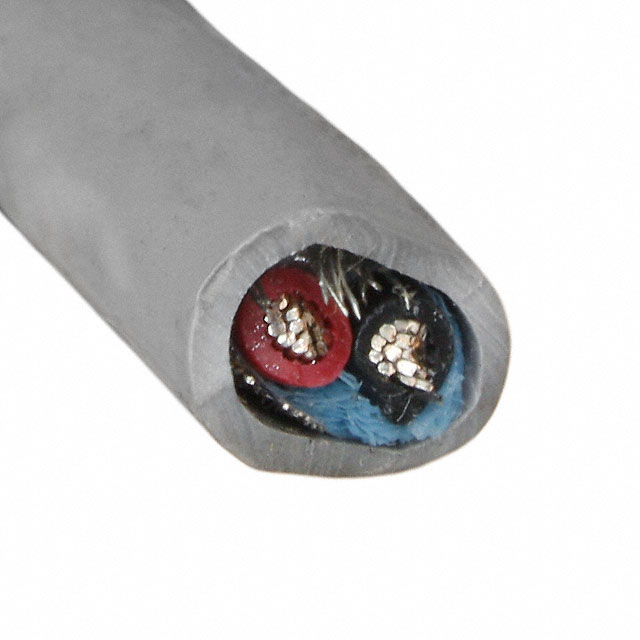

CABLE 2COND 24AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket Color | Shield Type | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Wire Gauge | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Number of Conductors | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Polyphenylene Ether Modified (mPPE) | 0.035 in | 0.889 mm | 304.8 m | 1000 ft | Slate | Braid Foil | Polyphenylene Ether Modified (mPPE) | ISO 10993 | 0.194 in | 4.93 mm | Biological Compatibility | 24 AWG | 600 V | -40 C | 105 ░C | Multi-Conductor | 2 | Copper Tinned | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Polyphenylene Ether Modified (mPPE) | 0.035 in | 0.889 mm | Slate | Braid Foil | Polyphenylene Ether Modified (mPPE) | ISO 10993 | 0.194 in | 4.93 mm | Biological Compatibility | 24 AWG | 600 V | -40 C | 105 ░C | Multi-Conductor | 2 | Copper Tinned | 100 ft | 30.5 m |
