1744337 Series

Catalog

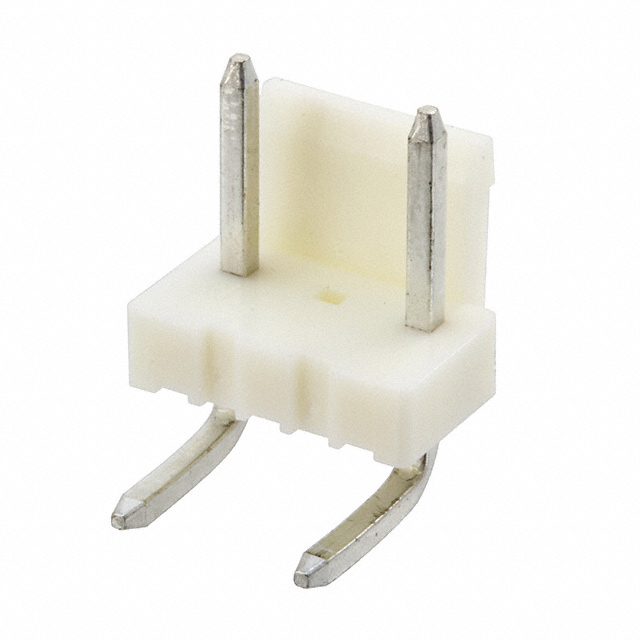

HEADERS & WIRE HOUSINGS EP HDR ASSY 3P R/A, OMIT 2

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Contact Material	Material Flammability Rating	Termination	Mounting Type	Insulation Color	Style	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Shrouding	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Voltage Rating	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material
TE Connectivity AMP Connectors 1744337-1	General Purpose Industrial Lighting	2.03 µm	80 µin	8.59 mm	0.338 in	Header	Male Pin	Brass	UL94 V-0	Solder	Right Angle Through Hole	Natural	Board to Cable/Wire	1	3.96 mm	0.156 in	0.142 in	3.6 mm	Locking Ramp	Shrouded - 1 Wall	2	105 ░C	-25 °C	Square	2.03 µm	80 µin	250 VAC	Tin	8.61 mm	0.339 "	Nylon 6/6 Polyamide (PA66)
