HM1F43 Series

Catalog

CONN RECEPT 96POS R/A PCB PRSFT

Part	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Number of Positions Loaded	Connector Style	Contact Finish	Features	Number of Positions	Mounting Type	Termination	Number of Positions Loaded
Amphenol ICC (FCI) HM1F43TAP000HMLF	UL94 V-0	1.5 A	-55 C	85 °C	1000 VDC	Natural	29.5 µin	0.75 µm	0.079 in	2 mm	Receptacle Female Sockets	All	High Speed	Gold	Board Guide Spacer	96	Board Edge Right Angle Through Hole	Solder

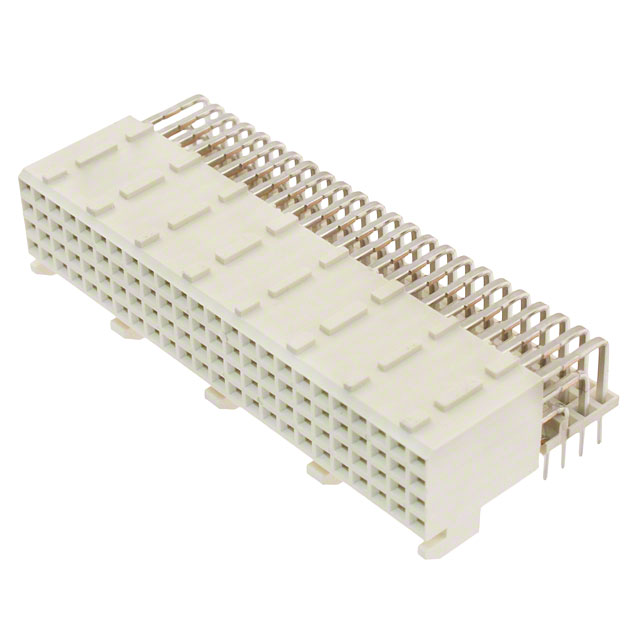

Amphenol ICC (FCI) HM1F43TAP000H6LF	UL94 V-0		-55 C	85 °C	1000 VDC	Natural	29.5 µin	0.75 µm	0.079 in	2 mm	Receptacle Female Sockets	All		Gold	Board Guide Spacer	96	Board Edge Right Angle Through Hole	Solder
Amphenol ICC (FCI) HM1F43FDP270H6P	UL94 V-0		-55 C	105 ░C	1000 VDC	Natural	29.5 µin	0.75 µm	0.079 in	2 mm	Receptacle Female Sockets		High Speed	Gold	Board Guide Spacer	96	Board Edge Right Angle Through Hole	Press-Fit	92
Amphenol ICC (FCI) HM1F43FDP000H6P	UL94 V-0		-55 C	105 ░C	1000 VDC	Natural	29.5 µin	0.75 µm	0.079 in	2 mm	Receptacle Female Sockets	All	High Speed	Gold	Board Guide Spacer	96	Board Edge Right Angle Through Hole	Press-Fit
