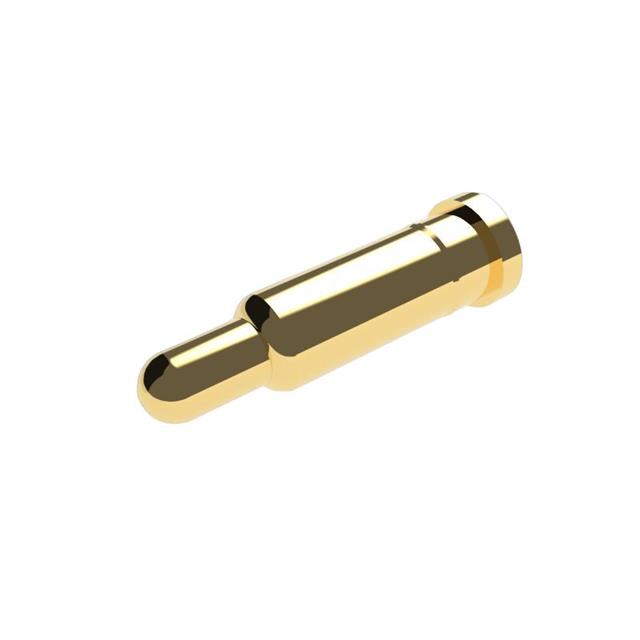

PH-MVF-43 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height [z] | Minimum Working Height [z] | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height | Contact Finish | Current Rating (Amps) | Operating Force - Initial | Mounting Type | Contact Type | Recommended Working Height | Recommended Working Height | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -55 C | 125 °C | 0.181 in | 4.6 mm | 1 mm | 0.039 in | 0.236 in | 6 mm | Gold | 3 A | 70 gf | Surface Mount | Sleeve & Plunger (Pogo Pins) | 0.197 in | 5 mm | 0.071 in | 1.8 mm | Brass | 1000000 |
