NPTC221 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

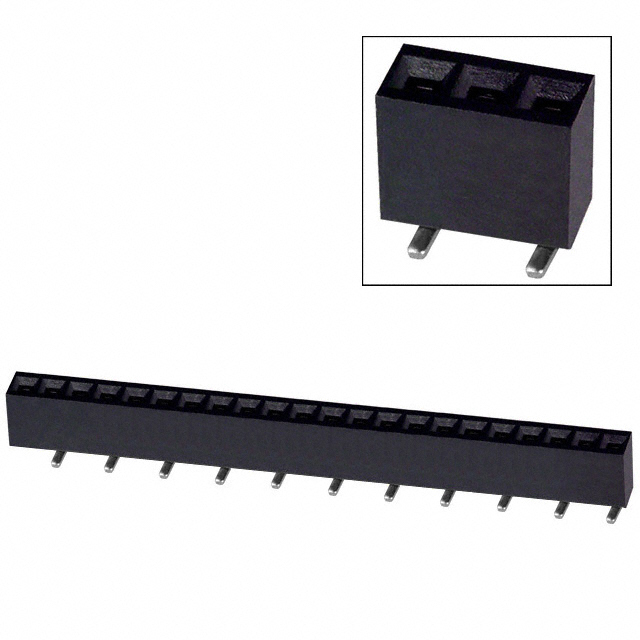

CONN HDR 22POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Pitch - Mating | Pitch - Mating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Contact Type | Number of Positions | Number of Rows | Insulation Height | Insulation Height | Contact Finish - Post | Connector Type | Mounting Type | Termination | Number of Positions Loaded | Fastening Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 0.1 " | 2.54 mm | 250 V | -40 C | 105 ░C | UL94 V-0 | 3 A | Female Socket | 22 | 1 | 0.28 in | 7.1 mm | Tin | Header Top or Bottom Entry | Surface Mount | Solder | All | Push-Pull | |
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 0.1 " | 2.54 mm | 250 V | -40 C | 105 ░C | UL94 V-0 | 3 A | Female Socket | 22 | 1 | 0.28 in | 7.1 mm | Tin | Header Top or Bottom Entry | Surface Mount | Solder | All | Push-Pull | Black |
