CWSB21AA Series
Manufacturer: NKK Switches
Beta
⌘K
ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Features | Approval Agency | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Switch Function | Color - Actuator/Cap | Actuator Type | Actuator Marking | Circuit | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | 12.9 mm | 19.2 mm | Quick Connect | Audible Click | cULus | 250 V | Panel Mount Snap-In | 6 A | On-Off | Black | Concave (Curved) | O I | DPST | 70 °C | -10 °C |

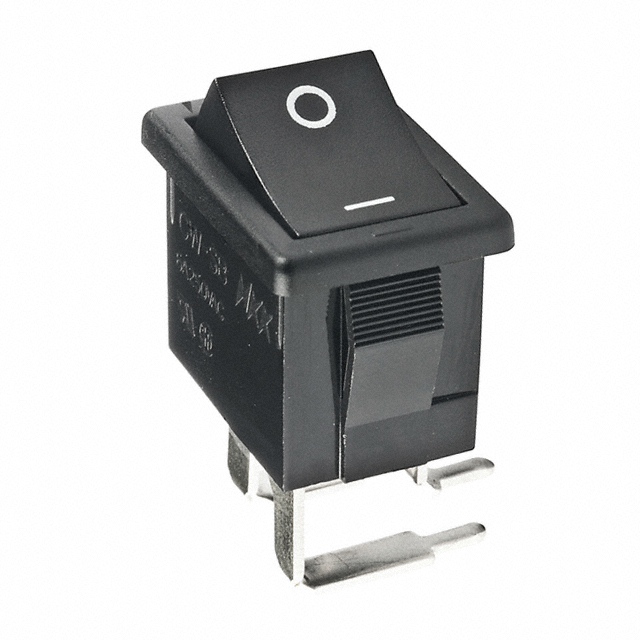

 NKK Switches | 30000 Steps | 10000 Cycles | 12.9 mm | 19.2 mm | PC Pin | Audible Click | cULus | 250 V | Panel Mount Right Angle Snap-In | 6 A | On-Off | Black | Concave (Curved) | O I | DPST | 70 °C | -10 °C |

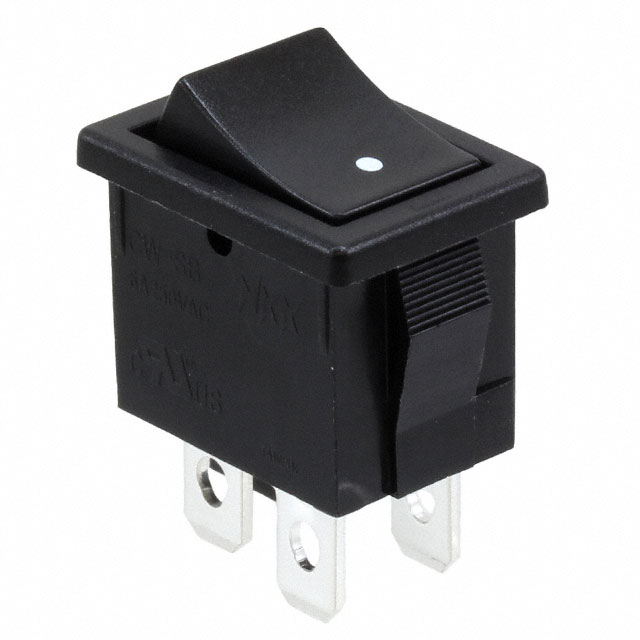

 NKK Switches | 30000 Steps | 10000 Cycles | 12.9 mm | 19.2 mm | Quick Connect | Audible Click | cULus | 250 V | Panel Mount Snap-In | 6 A | On-Off | Black | Concave (Curved) | Dot | DPST | 70 °C | -10 °C |
