S2/0 Series

Catalog

CONN RING FLAT 2/0AWG #1/4 CRIMP

Part	Stud/Tab Size	Contact Finish	Termination	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness

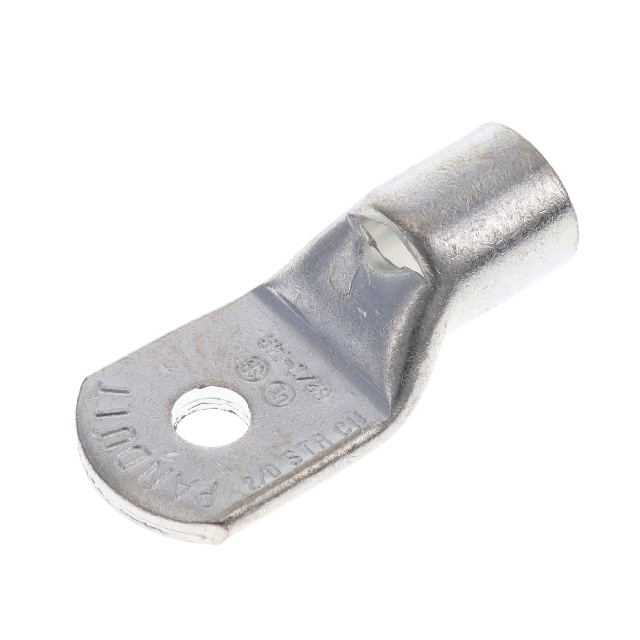

Panduit Corp S2/0-14R-X	0.25 Stud	Tin	Crimp Funnel Opening	Non-Insulated	0.85 in	21.59 mm	Copper	Free Hanging (In-Line)	Flat Sided	2.1 in	53.34 mm	0.13 in	3.3 mm
Panduit Corp S2/0-38R-X	0.375 Stud	Tin	Crimp Funnel Opening	Non-Insulated	0.85 in	21.59 mm	Copper	Free Hanging (In-Line)	Flat Sided	1.9 in	48.26 mm	0.13 in	3.3 mm

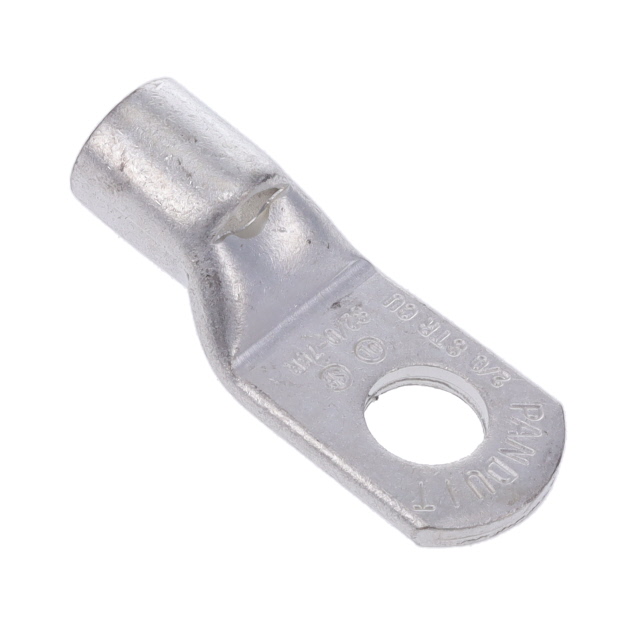

Panduit Corp S2/0-76R-X	0.4375 Stud	Tin	Crimp Funnel Opening	Non-Insulated	0.85 in	21.59 mm	Copper	Free Hanging (In-Line)	Flat Sided	2.1 in	53.34 mm	0.13 in	3.3 mm
