90168 Series
Manufacturer: Preci-Dip
Beta
⌘K

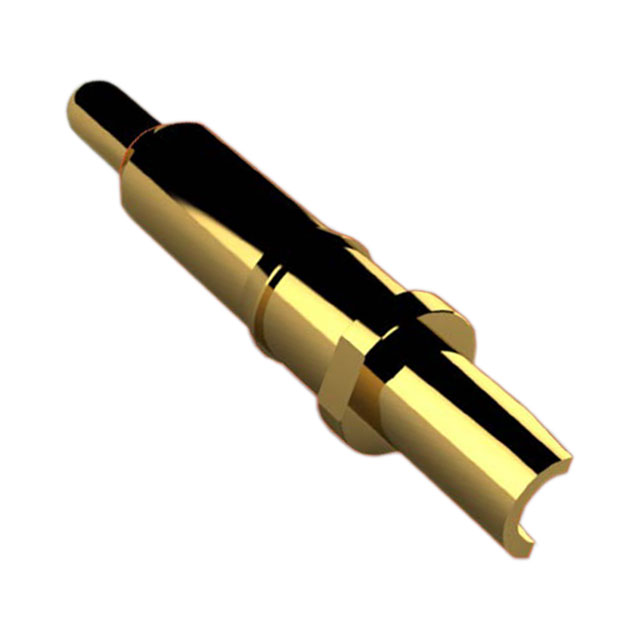

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Mating Cycles | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Mounting Type | Operating Force - Initial | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 112.17 gf | 40000 | Sleeve & Plunger (Pogo Pins) | 2.12 mm | 0.083 in | 0.038 in | 0.96 mm | 3 A | 6.3 mm | 0.248 " | Solder Cup Through Hole | 35.69 gf | Brass Alloy | 7.9 mm | 0.311 in | 0.38 µm | 15 µin | Gold |
