PREC029 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 29POS 2.54MM

Part	Contact Material	Number of Rows	Contact Finish - Post	Style	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Contact Type	Mounting Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Termination	Current Rating (Amps)	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PREC029SBAN-M71RC	Brass	1	Tin	Board to Board Cable	0.23 in	5.84 mm	Square	Black	Male Pin	Right Angle Through Hole	UL94 V-0	3.05 mm	0.12 in	0.098 "	2.5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	29	All	Unshrouded	0.1 "	2.54 mm
Sullins Connector Solutions PREC029SAAN-RC	Brass	1	Tin	Board to Board Cable	0.23 in	5.84 mm	Square	Black	Male Pin	Through Hole	UL94 V-0	3.05 mm	0.12 in	0.098 "	2.5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	29	All	Unshrouded	0.1 "	2.54 mm	0.448 in	11.39 mm

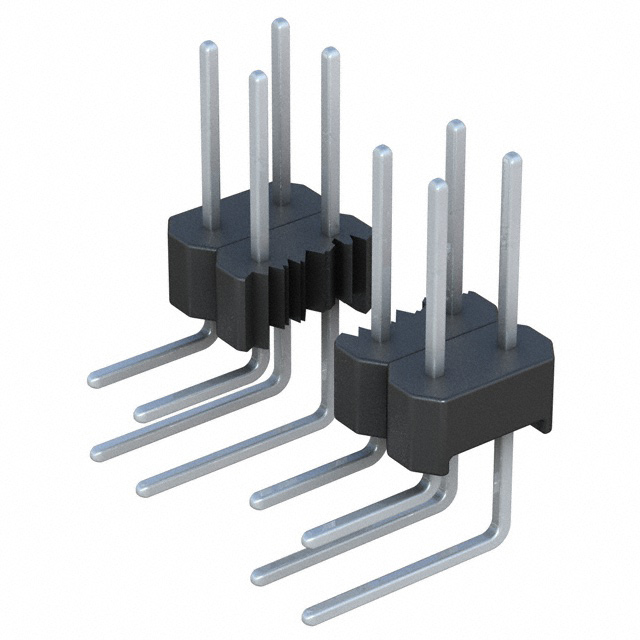

Sullins Connector Solutions PREC029DBAN-M71RC	Brass		Tin	Board to Board Cable	0.23 in	5.84 mm	Square	Black	Male Pin	Right Angle Through Hole	UL94 V-0	3.05 mm	0.12 in	0.197 "	5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	58	All	Unshrouded	0.1 "	2.54 mm			0.1 in	2.54 mm	2
Sullins Connector Solutions PREC029SACN-RC	Brass	1	Tin	Board to Board Cable	0.23 in	5.84 mm	Square	Black	Male Pin	Through Hole	UL94 V-0	8.13 mm	0.32 in	0.098 "	2.5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	29	All	Unshrouded	0.1 "	2.54 mm						0.648 in	16.47 mm
Sullins Connector Solutions PREC029SABN-RC	Brass	1	Tin	Board to Board Cable	0.23 in	5.84 mm	Square	Black	Male Pin	Through Hole	UL94 V-0	5.84 mm	0.23 "	0.098 "	2.5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	29	All	Unshrouded	0.1 "	2.54 mm	0.558 in	14.18 mm
Sullins Connector Solutions PREC029SFAN-RC	Brass	1	Tin	Board to Board Cable	0.318 in	8.08 mm	Square	Black	Male Pin	Through Hole	UL94 V-0	3.05 mm	0.12 in	0.098 "	2.5 mm	Solder	3 A	Push-Pull	Header Breakaway	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	29	All	Unshrouded	0.1 "	2.54 mm						0.537 in	13.63 mm
