RUMF32 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
HARMONY, UNIVERSAL PLUG-IN RELAY
| Part | Coil Resistance | Load - Max Switching | Mounting Type | Switching Voltage [Max] | Release Time | Must Operate Voltage | Relay Type | Coil Type | Termination Style | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Contact Rating (Current) | Coil Current | Contact Material | Contact Form | Operate Time | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 120 Ohms | 280 W 2500 VA | Socketable | 28 VDC 250 VAC | 20 ms | 9.6 VDC | General Purpose | Non Latching | Plug In | 12 VDC | 55 °C | -40 C | 1.2 VDC | 10 A | 0.1 A | Silver Nickel (AgNi) | 3PDT (3 Form C) | 20 ms | CSA EAC UL | Lighted Indicator Test Button |
 SCHNEIDER ELECTRIC | 7.3 kOhms | 280 W 2500 VA | Socketable | 28 VDC 250 VAC | 20 ms | 88 VDC | General Purpose | Non Latching | Plug In | 110 VDC | 55 °C | -40 C | 11 VDC | 10 A | 15.1 mA | Silver Nickel (AgNi) | 3PDT (3 Form C) | 20 ms | CSA EAC UL | Lighted Indicator Test Button |
 SCHNEIDER ELECTRIC | 72 Ohms | 280 W 2500 VA | Socketable | 28 VDC 250 VAC | 20 ms | 19.2 VAC | General Purpose | Non Latching | Plug In | 24 VAC | 55 °C | -40 C | 3.6 VAC | 10 A | 333.3 mA | Silver Nickel (AgNi) | 3PDT (3 Form C) | 20 ms | CSA EAC UL | Lighted Indicator Test Button |
 SCHNEIDER ELECTRIC | 470 Ohms | 280 W 2500 VA | Chassis Mount | 28 VDC 250 VAC | 20 ms | 19.2 VDC | General Purpose | Non Latching | Plug In | 24 VDC | 55 °C | -40 C | 2.4 VDC | 10 A | 51.1 mA | Silver Nickel (AgNi) | 3PDT (3 Form C) | 20 ms | CSA EAC UL | Lighted Indicator Test Button |

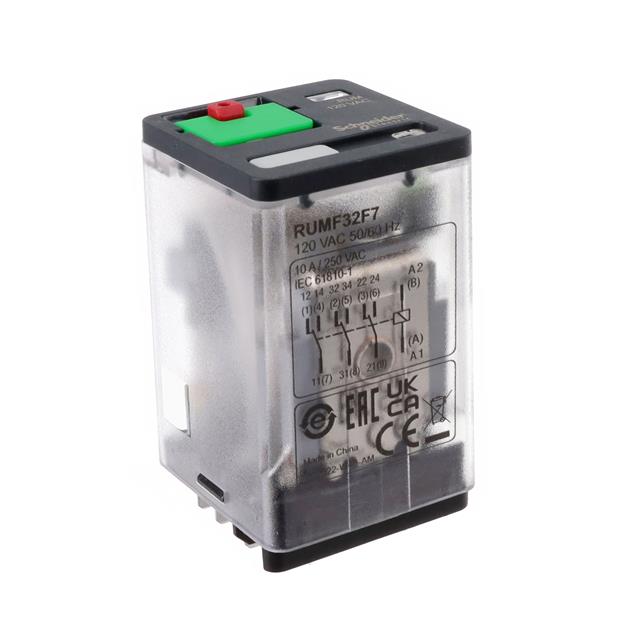

 SCHNEIDER ELECTRIC | 1.7 kOhms | 280 W 2500 VA | Socketable | 28 VDC 250 VAC | 20 ms | 96 VAC | General Purpose | Non Latching | Plug In | 120 VAC | 55 °C | -40 C | 18 VAC | 10 A | 70.6 mA | Silver Nickel (AgNi) | 3PDT (3 Form C) | 20 ms | CSA EAC UL | Lighted Indicator Test Button |
