SBT-90 Series

Catalog

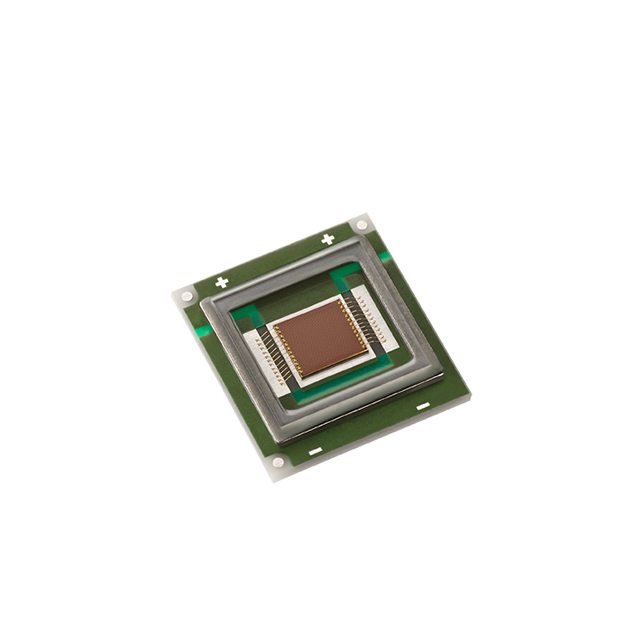

LED SBT90 RED 621NM SMD

Part	Thermal Resistance of Package	Package / Case	Lumens/Watt @ Current - Test	Wavelength [Min]	Wavelength [Max]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Color	Height - Seated (Max)	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Mounting Type	Current - Test	Wavelength	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	CCT (K)
Luminus Devices Inc. SBT-90-R-F75-HM100	0.64 °C/W	0404 (1010 Metric)	37 lm/W	615 nm	627 nm	13.5 A	2.7 V	25 °C	Red	1.71 mm	0.067 in	1350 lm	0.433 in	0.394 in	10 mm	11 mm	SMD	Surface Mount	13.5 A
Luminus Devices Inc. SBT-90-W57S-F71-NB202
Luminus Devices Inc. SBT-90-R-F75-HK101	0.64 °C/W	0404 (1010 Metric)	37 lm/W	619 nm	623 nm	13.5 A	2.7 V	25 °C	Red	1.71 mm	0.067 in	1350 lm	0.433 in	0.394 in	10 mm	11 mm	SMD	Surface Mount	13.5 A	621 nm
Luminus Devices Inc. SBT-90-R-F75-HM101	0.64 °C/W	0404 (1010 Metric)	37 lm/W	619 nm	623 nm	13.5 A	2.7 V	25 °C	Red	1.71 mm	0.067 in	1350 lm	0.433 in	0.394 in	10 mm	11 mm	SMD	Surface Mount	13.5 A	621 nm
Luminus Devices Inc. SBT-90-W57S-F71-NB200		2-SMD No Lead Exposed Pad				13.5 A	3.5 V		Cool White	1.71 mm	0.067 in				11 mm	10 mm		Surface Mount	9 A		1770 lm	1830 lm	1710 lm	70	0.394 "	0.433 "	5700 K
Luminus Devices Inc. SBT-90-WDLS-F71-NB150	0.64 °C/W	2-SMD No Lead Exposed Pad	59 lm/W			9 A	3.5 V		White	1.71 mm	0.067 in		0.433 in	0.394 in	10 mm	11 mm		Surface Mount	9 A		1770 lm	1830 lm	1710 lm	70
Luminus Devices Inc. SBT-90-R-F75-HK100		0404 (1010 Metric)	37 lm/W	615 nm	627 nm	13.5 A	2.7 V	25 °C	Red	1.71 mm	0.067 in	1350 lm	0.433 in	0.394 in	10 mm	11 mm	SMD	Surface Mount	13.5 A
