Potter & Brumfield SSRD Series

Catalog

SOLID STATE RELAYS - SSRS DUAL 240AC/3-32D 40A

Part	Load Current	Termination Style	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Package / Case	Output Type	Mounting Type
TE Connectivity AMP Connectors SSRD-240D40	40 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	15 V	4 V	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC Zero Cross	Chassis Mount
TE Connectivity AMP Connectors SSRD-240DE40R
TE Connectivity AMP Connectors SSRD-240D25R	25 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	15 V	4 V	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC	Chassis Mount
TE Connectivity AMP Connectors SSRD-240D40R	40 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	15 V	4 V	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC	Chassis Mount
TE Connectivity AMP Connectors SSRD-240D25	25 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	15 V	4 V	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC Zero Cross	Chassis Mount
TE Connectivity AMP Connectors SSRD-240DE25R

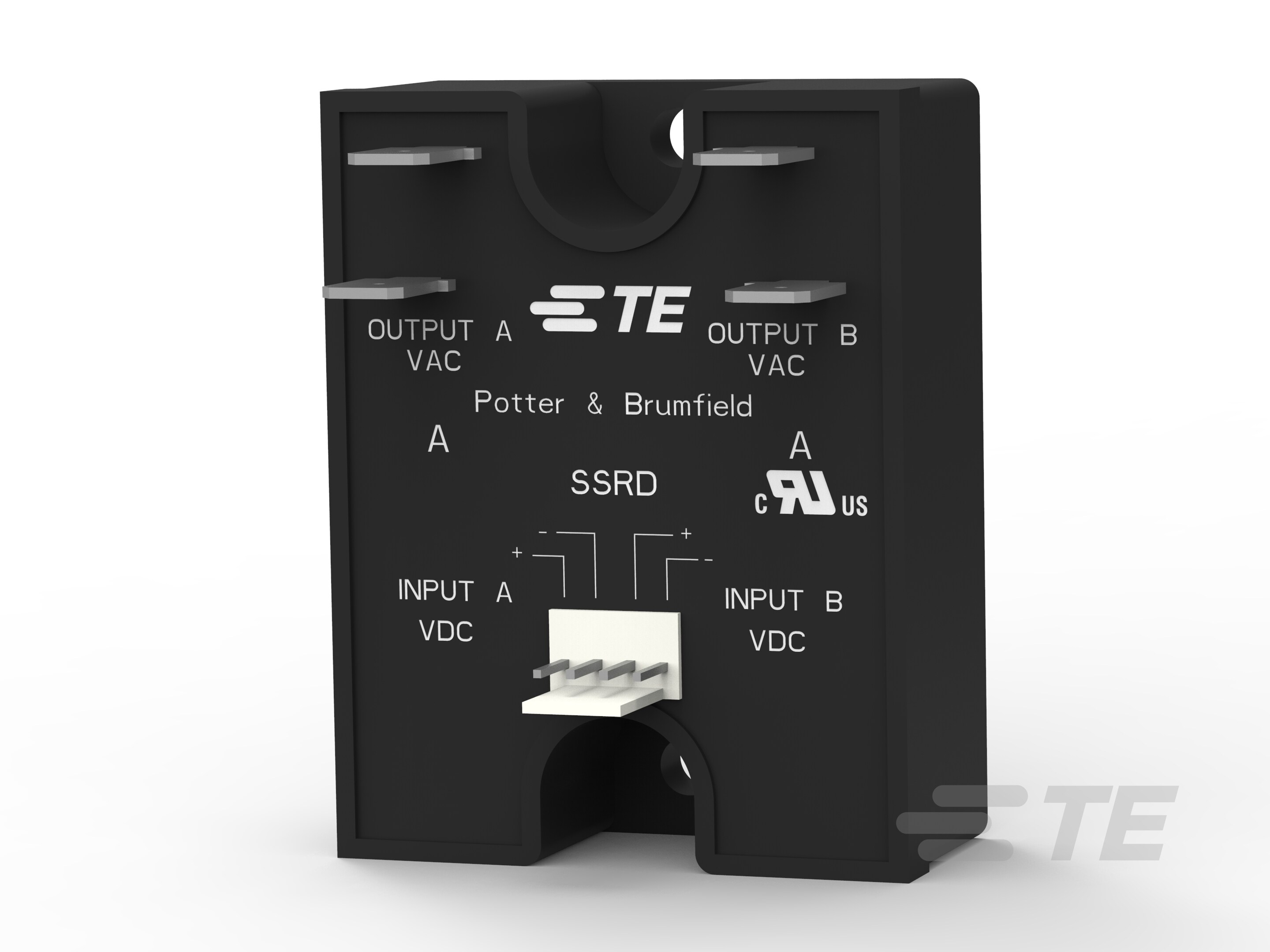

TE Connectivity AMP Connectors SSRD-240DE40	40 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	32 VDC	18 VDC	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC Zero Cross	Chassis Mount
TE Connectivity AMP Connectors SSRD-240DE25	25 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	32 VDC	18 VDC	24 V	280 V	80 °C	-30 ░C	SPST-NO (1 Form A) x 2	Hockey Puck	AC Zero Cross	Chassis Mount
