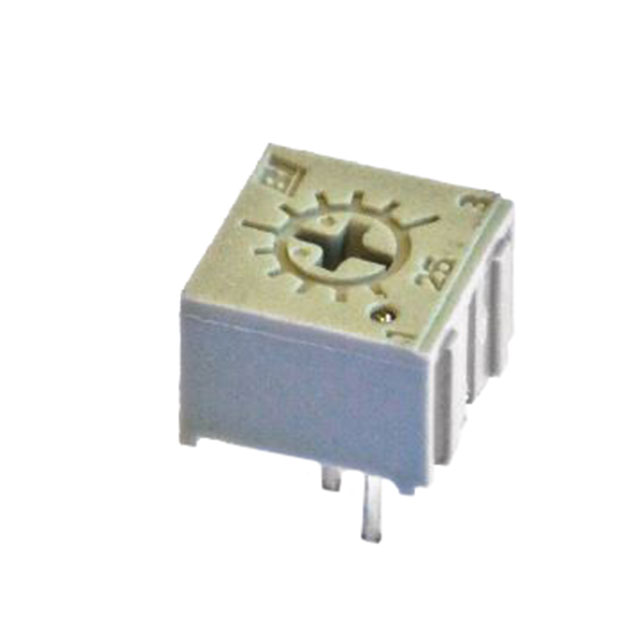

25UR Series

Catalog

TRIMMER 50K OHM 0.5W PC PIN TOP

Part	Resistive Material	Number of Turns	Resistance	Temperature Coefficient	Mounting Type	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Adjustment Type	Power (Watts)	Power (Watts) Options	Tolerance	Termination Style
TT Electronics/BI 25UR50KLF	Cermet	1 turns	50 kOhm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
TT Electronics/BI 25UR10KLFTR	Cermet	1 turns	10 kOhm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
TT Electronics/BI 25UR100KLFTR	Cermet	1 turns	100 kOhm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
TT Electronics/BI 25UR1KLFTR	Cermet	1 turns	1 kOhm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
TT Electronics/BI 25UR20LFTR	Cermet	1 turns	20 Ohm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
TT Electronics/BI 25UR2KLFTR	Cermet	1 turns	2 kOhm	100 ppm/°C	Through Hole	Square	0.27 in	0.27 in	Top Adjustment	500 mW	1/2W	10 %	PC Pins
