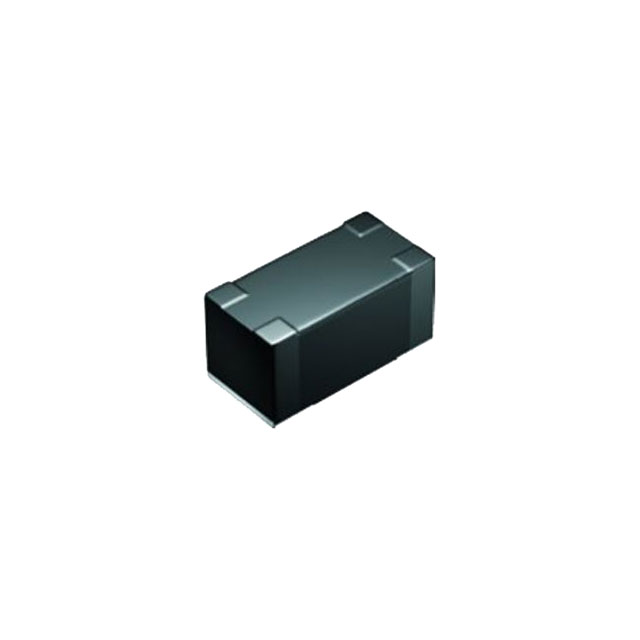

BRC Series

Catalog

POWER INDUCTORS - SMD 963-LSQPB160808TR56M RPLCMT PN 0603 .56UH .1235OHMS 760MA

Part	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Mounting Type	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Current - Saturation (Isat)	Tolerance	Type	Supplier Device Package	Shielding	Inductance Frequency - Test	Package / Case	Package / Case	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]
Taiyo Yuden BRC1608TR56M	95 mOhm	0.031 in	1.6 mm	0.8 mm	0.063 "	Ferrite	Surface Mount	560 nH	-40 C	105 ░C	760 mA	1.15 A	20 %	Drum Core Wirewound	0603 (1608 Metric)	Unshielded	7.96 MHz	1608 Metric	0603	170 MHz	0.039 in	1 mm
Taiyo Yuden BRC2016T101K		0.063 "	2 mm		0.079 in	Ferrite	Surface Mount	100 µH	-40 C	105 ░C	0.17 A	140 mA	10 %	Drum Core Wirewound	0806 (2016 Metric)	Semi-Shielded	100 kHz		0806 (2016 Metric)	7 MHz	0.071 in	1.8 mm	1.6 mm	4.42 Ohm
Taiyo Yuden BRC2016T330M		0.063 "	2 mm		0.079 in	Ferrite	Surface Mount	33 µH	-40 C	105 ░C	0.24 A	270 mA	20 %	Drum Core Wirewound	0806 (2016 Metric)	Unshielded	100 kHz		0806 (2016 Metric)	13 MHz	0.071 in	1.8 mm	1.6 mm	1.7 Ohm
Taiyo Yuden BRC2518T470M	1.45 Ohm	0.071 in	2.5 mm		0.098 in	Ferrite	Surface Mount	47 µH	-40 C	105 ░C	0.3 A	410 mA	20 %	Drum Core Wirewound	1007 (2518 Metric)	Unshielded	1 MHz		1007 (2518 Metric)	6.5 MHz		0.079 in	1.8 mm		2 mm
Taiyo Yuden BRC2016T2R2M		0.063 "	2 mm		0.079 in	Ferrite	Surface Mount	2.2 µH	-40 C	105 ░C	760 mA	910 mA	20 %	Drum Core Wirewound	0806 (2016 Metric)	Unshielded	100 kHz		0806 (2016 Metric)	250 MHz	0.071 in	1.8 mm	1.6 mm	234 mOhm
Taiyo Yuden BRC2012T1R0M		0.049 "	2 mm		0.079 in	Ferrite	Surface Mount	1 µH	-40 C	105 ░C	1.4 A		20 %	Drum Core Wirewound	0805 (2012 Metric)	Semi-Shielded	1 MHz		0805	490 MHz	0.055 in	1.4 mm	1.25 mm	78 mOhm
