ISL54066 Series

Catalog

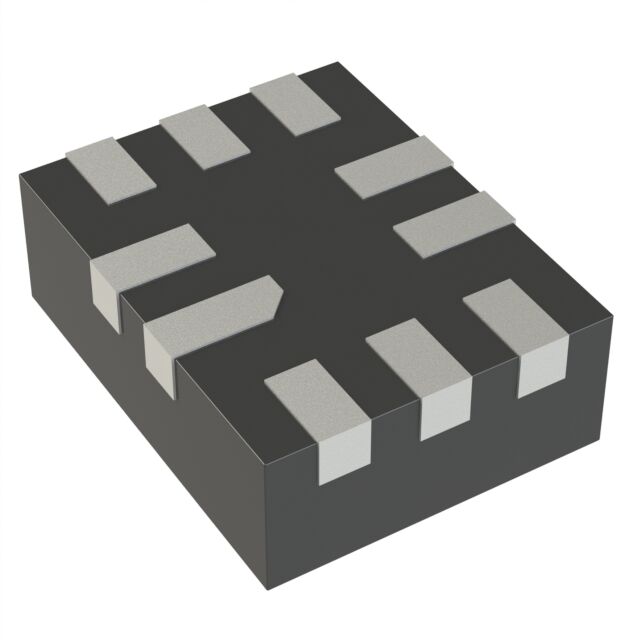

IC SWITCH SPST-NOX2 1OHM 10UTQFN

Part	Package / Case	Switch Circuit	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Charge Injection	Crosstalk	Number of Circuits	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	-3db Bandwidth	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]	Supplier Device Package
Renesas Electronics Corporation ISL54066IRUZ-T	10-UFQFN	SPST - NO	1:1	39 ns	27 ns	170 pC	-80 dB	2	Surface Mount	33 pF	33 pF	85 °C	-40 °C	1.8 V	6.5 V	30 MHz	5 mOhm	1 Ohms	10-UTQFN (1.8x1.4)
Renesas Electronics Corporation ISL54066IRTZ	10-VFDFN Exposed Pad	SPST - NO	1:1	39 ns	27 ns	170 pC	-80 dB	2	Surface Mount	33 pF	33 pF	85 °C	-40 °C	1.8 V	6.5 V	30 MHz	5 mOhm	1 Ohms	10-TDFN (3x3)
