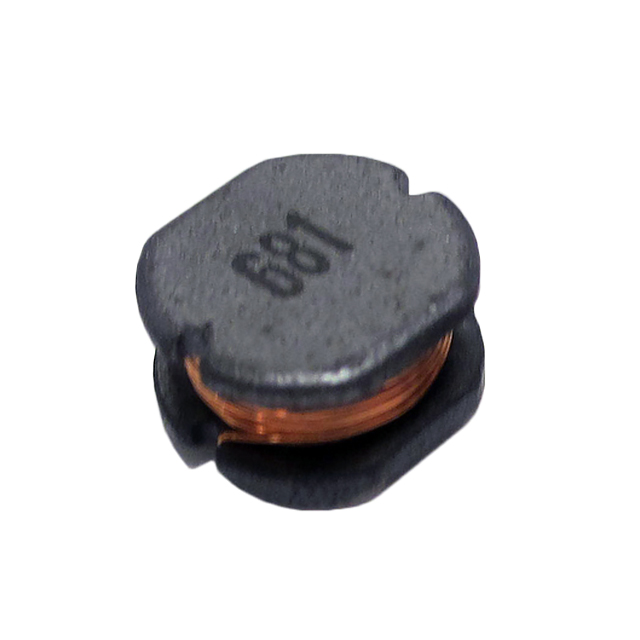

ASPI-H Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - SMD FIXED IND 5.6UH 0.101OHM 1.60A
| Part | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Shielding | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Mounting Type | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 5.6 µH | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 1.6 A | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 20 % | Surface Mount | ||
Abracon LLC | 1.8 µH | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 2.91 A | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 20 % | Surface Mount | 42 mOhm | |
Abracon LLC | 33 µH | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 0.64 A | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 10 % | Surface Mount | 540 mOhm | |
 Abracon LLC | 150 µH | 5.2 mm | 5.8 mm | 0.228 in | 0.205 " | 430 mA | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 10 % | Surface Mount | 1.3 Ohm | |
 Abracon LLC | 4.7 ÁH | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 1.7 A | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 20 % | Surface Mount | 94 mOhm | |
Abracon LLC | 22 µH | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 760 mA | Unshielded | 100 kHz | 0.138 " | 3.5 mm | Wirewound | Nonstandard | 125 °C | -40 C | 10 % | Surface Mount | 378 mOhm |
