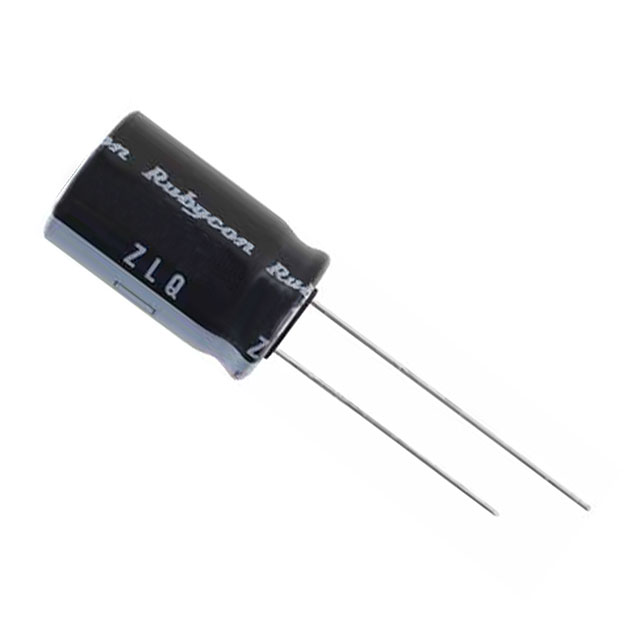

ZLQ Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Applications	Impedance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Rubycon 35ZLQ56MEFC5X11	20 %	35 V	-40 C	105 ░C	56 µF	2 mm	0.079 in	Through Hole	3000 Hrs	Polar	0.492 in	12.5 mm	Can Radial	General Purpose	210 mOhms	200 mA	0.197 in	5 mm	400 mA
Rubycon 6.3ZLQ1500MEFC8X16	20 %	6.3 VDC	-40 C	105 ░C	1.5 mF	3.5 mm	0.138 in	Through Hole	4000 Hrs	Polar			Can Radial	General Purpose	38 mOhms	834 mA	0.315 in	8 mm	1.39 A	17.5 mm	0.689 in
Rubycon 16ZLQ1200MEFC10X16	20 %	16 V	-40 C	105 ░C	1.2 mF	5 mm	0.197 "	Through Hole	5000 Hrs	Polar			Can Radial	General Purpose	25 mOhms	1.158 A	0.394 in	10 mm	1.93 A	17.5 mm	0.689 in
Rubycon 16ZLQ820MEFC10X12.5	20 %	16 V	-40 C	105 ░C	820 µF	5 mm	0.197 "	Through Hole	5000 Hrs	Polar	14 mm		Can Radial	General Purpose	35 mOhms	882 mA	0.394 in	10 mm	1.47 A			0.551 in
Rubycon 25ZLQ2700MEFC12.5X30	20 %	25 VDC	-40 C	105 ░C	2700 µF	5 mm	0.197 "	Through Hole	6000 Hrs	Polar			Can Radial	General Purpose	12 mOhms	2.576 A	0.492 in	12.5 mm	3.68 A		32 mm		1.26 in
Rubycon 35ZLQ820MEFC10X25	20 %	35 V	-40 C	105 ░C	820 µF	5 mm	0.197 "	Through Hole	5000 Hrs	Polar	27 mm		Can Radial	General Purpose	15 mOhms	1.5 A	0.394 in	10 mm	2.5 A			1.063 in
Rubycon 6.3ZLQ3900MEFC10X20	20 %	6.3 VDC	-40 C	105 ░C	3900 µF	5 mm	0.197 "	Through Hole	5000 Hrs	Polar			Can Radial	General Purpose	18 mOhms		0.394 in	10 mm	2.13 A					0.866 in	22 mm
