45206 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Material	Style	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Features	Number of Rows [custom]	Contact Type	Material Flammability Rating	Contact Shape	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating

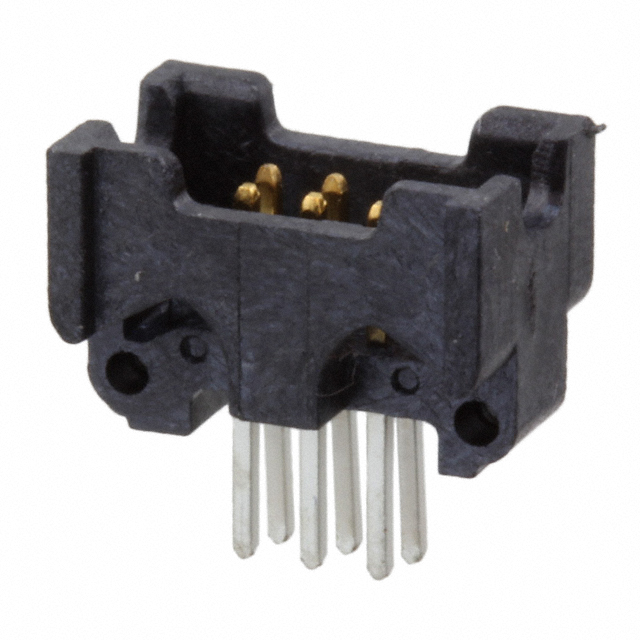

3M Electronic Specialty 45206-600230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2.4 mm	0.094 in	Through Hole	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Keying Slot	2	Male Pin	UL94 V-0	Square	Push-Pull	Tin
3M Electronic Specialty 45206-520230	200 µin	5.08 µm		All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2.4 mm	0.094 in	Right Angle Through Hole	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.33 mm	0.21 in	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Keying Slot	2	Male Pin	UL94 V-0	Square	Latch Lock/Eject Hooks	Tin
3M Electronic Specialty 45206-620230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2.4 mm	0.094 in	Through Hole	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Keying Slot	2	Male Pin	UL94 V-0	Square	Latch Lock/Eject Hooks	Tin
3M Electronic Specialty 45206-600200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2.4 mm	0.094 in	Through Hole	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in			Liquid Crystal Polymer (LCP)	Keying Slot	2	Male Pin	UL94 V-0	Square	Push-Pull	Tin	Flash
3M Electronic Specialty 45206-220230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall			Surface Mount	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Keying Slot Pick and Place	2	Male Pin	UL94 V-0	Square	Latch Lock/Eject Hooks	Tin
3M Electronic Specialty 45206-200200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall			Surface Mount	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in			Liquid Crystal Polymer (LCP)	Keying Slot Pick and Place	2	Male Pin	UL94 V-0	Square	Push-Pull	Tin	Flash
3M Electronic Specialty 45206-620200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2.4 mm	0.094 in	Through Hole	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in			Liquid Crystal Polymer (LCP)	Keying Slot	2	Male Pin	UL94 V-0	Square	Latch Lock/Eject Hooks	Tin	Flash
3M Electronic Specialty 45206-220200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall			Surface Mount	Solder	1.27 mm	0.05 in	Header	-65 ░C	125 °C	6	125 VDC	Copper Alloy	Board to Cable/Wire	5.65 mm	0.222 in			Liquid Crystal Polymer (LCP)	Keying Slot Pick and Place	2	Male Pin	UL94 V-0	Square	Latch Lock/Eject Hooks	Tin	Flash
