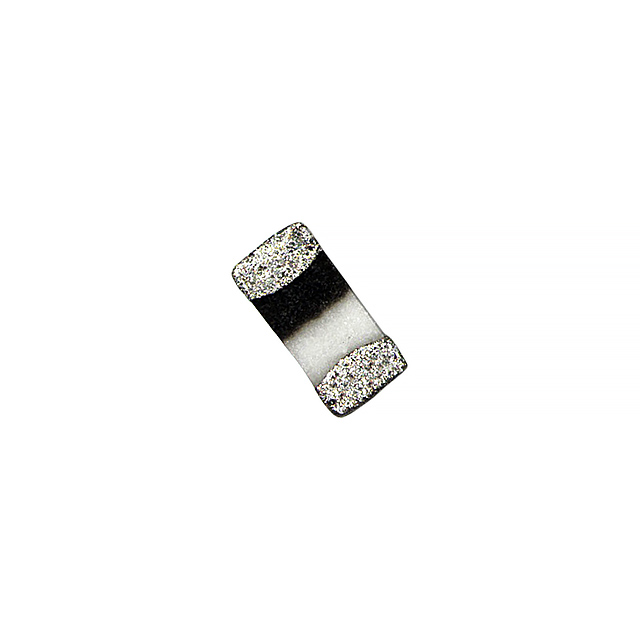

PE-0402CL Series

RF Inductors - SMD 0402 18nH 300mA DCR=500mOhms RF

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD 0402 18nH 300mA DCR=500mOhms RF

Catalog

RF Inductors - SMD 0402 18nH 300mA DCR=500mOhms RF

Part	Type	Supplier Device Package	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Material - Core	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Inductance	DC Resistance (DCR)
Pulse Electronics PE-0402CL180JTT	Multilayer	0402	Unshielded	-55 C	125 °C	8	100 MHz	0.55 mm	0.022 in	0.3 A	Ceramic	5 %	100 MHz	2.1 GHz	Surface Mount	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	500 mOhm	18 nH
Pulse Electronics PE-0402CL1N5STT	Multilayer	0402	Unshielded	-55 C	125 °C	8	100 MHz	0.55 mm	0.022 in	0.3 A	Ceramic	0.3 nH	100 MHz	6 GHz	Surface Mount	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm		1.5 nH	100 mOhm
Pulse Electronics PE-0402CL100JTT	Multilayer	0402	Unshielded	-55 C	125 °C	8	100 MHz	0.55 mm	0.022 in	0.3 A	Ceramic	5 %	100 MHz	3.2 GHz	Surface Mount	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	400 mOhm	10 nH
