BSC030 Series
Manufacturer: INFINEON
Beta
⌘K

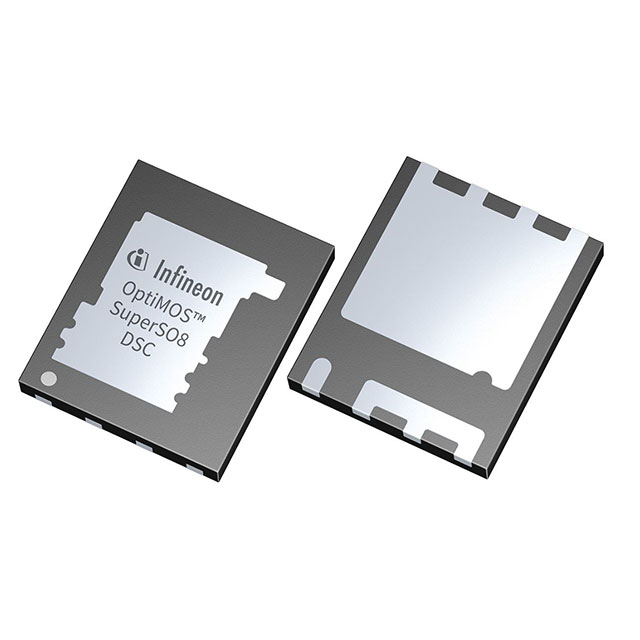

OPTIMOS™ P-CHANNEL POWER MOSFET -30 V ; SUPERSO8 5X6 PACKAGE; 3 MOHM;
| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs [Max] | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | FET Type | Package / Case | Vgs (Max) | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 14000 pF | MOSFET (Metal Oxide) | 30 V | 3 mOhm | 186 nC | 25.4 A 100 A | 2.5 W 125 W | 3.1 V | 6 V 10 V | Surface Mount | P-Channel | 8-PowerTDFN | 25 V | PG-TDSON-8-1 | 150 °C | -55 °C | ||
 INFINEON | MOSFET (Metal Oxide) | 100 V | 3 mOhm | 88 nC | 171 A | 188 W | 3.8 V | 6 V 10 V | Surface Mount | N-Channel | 8-PowerWDFN | 20 V | PG-WSON-8-2 | 175 °C | -55 °C | 6500 pF | ||
INFINEON | 4900 pF | MOSFET (Metal Oxide) | 40 V | 3 mOhm | 23 A 100 A | 2.5 W 83 W | 4 V | 10 V | Surface Mount | N-Channel | 8-PowerTDFN | 20 V | PG-TDSON-8-1 | 150 °C | -55 °C | 61 nC |
