W5B80-8 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

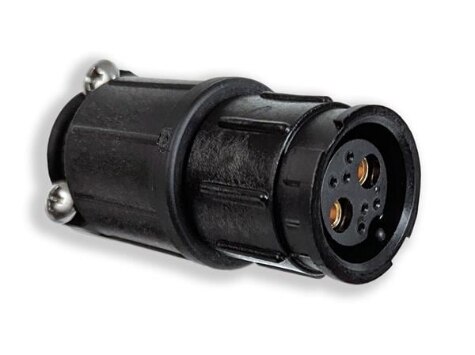

CIRCULAR CONNECTOR, MULTI-CON-X SERIES, CABLE MOUNT RECEPTACLE, 8 CONTACTS, CRIMP SOCKET, BAYONET
| Part | Contact Finish - Mating | Fastening Type | Orientation | Connector Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Shell Material | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Applications | Backshell Material, Plating | Voltage Rating | Mounting Type | Current Rating (Amps) | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Features | Shielding | Primary Material | Ingress Protection | Insert Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Gold | Bayonet Lock | Keyed | Receptacle Female Sockets | Copper Alloy | 85 °C | -40 C | Black | Polybutylene Terephthalate (PBT) | UL94 HB | 2 | 6 | Lighting Medical | Polybutylene Terephthalate (PBT) | 300 VDC | Free Hanging (In-Line) | 23 A | 10.16 mm | 8.89 mm | 0.35 in | 0.4 in | Backshell Cable Clamp | Unshielded | Plastic | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | Crimp |
