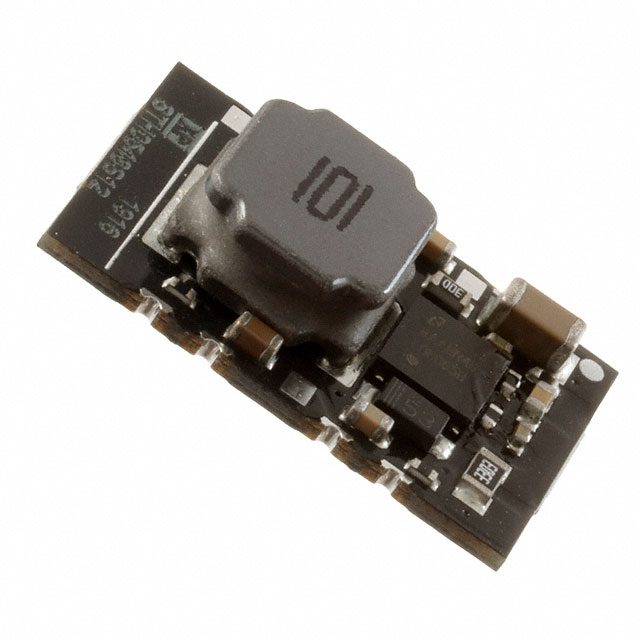

STH0548 Series

Manufacturer: XP Power

Catalog

NON ISOLATED POL DC/DC CONVERTER, 1 OUTPUT, 1.65 W, 3.3 V, 500 MA, FIXED, ADJUSTABLE

Part	Voltage - Input (Min) [Min]	Mounting Type	Type	Applications	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Voltage - Output 1
XP Power STH0548S3V3	9 V	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	10-SMD Module 6 Leads	11.8 mm	0.2 "	0.77 in	5 mm	19.5 mm	0.46 in	72 V	79 %	500 mA	105 C	-40 °C	1	Remote On/Off SCP	3.3 V
XP Power STH0548S6V5	9 V	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	10-SMD Module 6 Leads	11.8 mm	0.2 "	0.77 in	5 mm	19.5 mm	0.46 in	72 V	89 %	500 mA	105 C	-40 °C	1	Remote On/Off SCP	6.5 V
XP Power STH0548S05	9 V	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	10-SMD Module 6 Leads	11.8 mm	0.2 "	0.77 in	5 mm	19.5 mm	0.46 in	72 V	86 %	500 mA	105 C	-40 °C	1	Remote On/Off SCP	5 V
XP Power STH0548S09	14 V	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	10-SMD Module 6 Leads	11.8 mm	0.2 "	0.77 in	5 mm	19.5 mm	0.46 in	72 V	90 %	500 mA	105 C	-40 °C	1	Remote On/Off SCP	9 V
XP Power STH0548S15	21 V	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	10-SMD Module 6 Leads	11.8 mm	0.2 "	0.77 in	5 mm	19.5 mm	0.46 in	72 V	92 %	400 mA	105 C	-40 °C	1	Remote On/Off SCP	15 V
