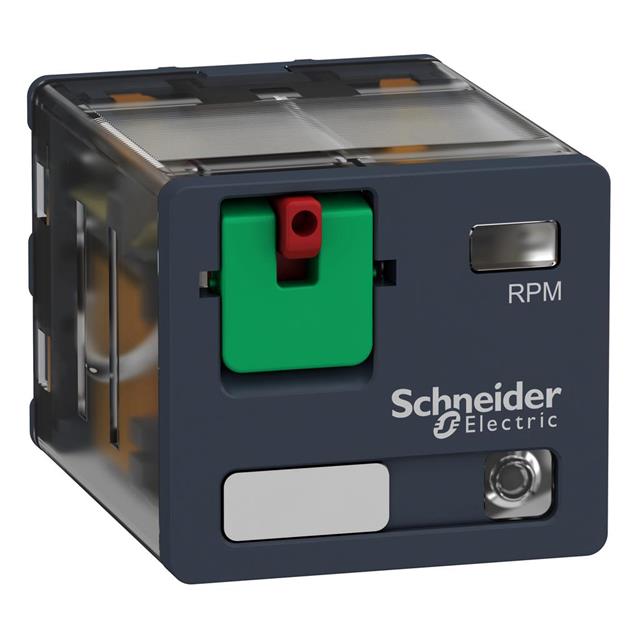

RPM32 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
HARMONY, POWER PLUG-IN RELAY, 15
| Part | Coil Resistance | Switching Voltage [Max] | Contact Form | Termination Style | Release Time | Relay Type | Approval Agency | Contact Rating (Current) | Contact Material | Features | Operate Time | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Current | Must Release Voltage | Load - Max Switching | Coil Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 2.88 kOhms | 28 VDC 250 VAC | 3PDT (3 Form C) | Plug In | 20 ms | General Purpose | CSA EAC UL | 15 A | Silver Nickel (AgNi) | Lighted Indicator Test Button | 20 ms | 96 VAC | 55 °C | -40 C | Socketable | 41.7 mA | 18 VAC | 420 W 3750 VA | Non Latching | 120 VAC |
 SCHNEIDER ELECTRIC | 460 Ohms | 28 VDC 250 VAC | 3PDT (3 Form C) | Plug In | 20 ms | General Purpose | CSA EAC UL | 15 A | Silver Nickel (AgNi) | Lighted Indicator Test Button | 20 ms | 38.4 VAC | 55 °C | -40 C | DIN Rail | 104.3 mA | 7.2 VAC | 420 W 3750 VA | Non Latching | 48 VAC |
