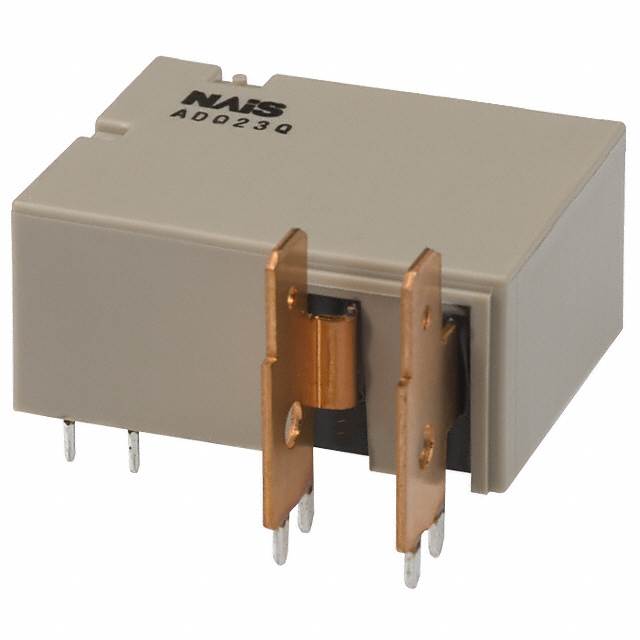

ADQ23Q Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 6V
| Part | Coil Resistance | Relay Type | Must Operate Voltage | Contact Material | Contact Form | Coil Type | Release Time | Contact Rating (Current) | Operate Time | Termination Style | Load - Max Switching | Coil Current | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 36 Ohms | General Purpose | 4.2 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | Dual Coil Latching | 20 ms | 30 A | 20 ms | PC Pin Quick Connect - 0.250" (6.3mm) | 7500 VA | 167 mA | Through Hole | -40 C | 65 °C | Sealed - Fully | 250 VAC |
