5470/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

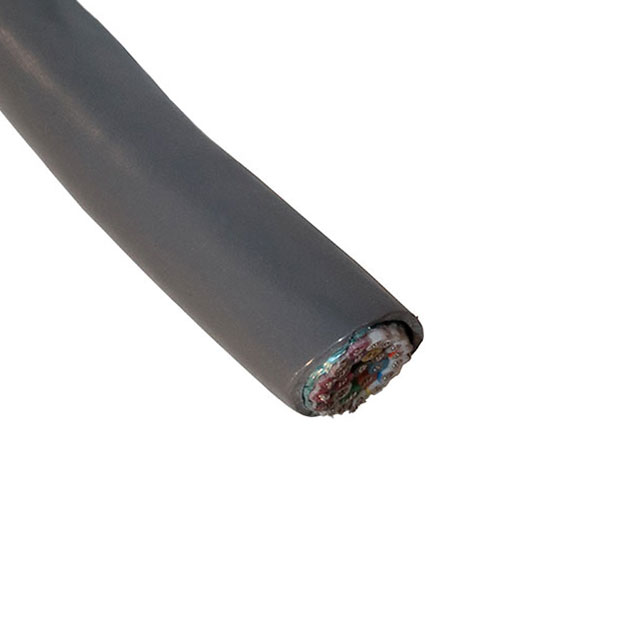

MULTICONDUCTOR CABLE, XTRA GUARD® 1, SHIELDED, 25 CONDUCTOR, 20 AWG, 0.56 MM², 100 FT, 30.5 M
| Part | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket Color | Shield Coverage | Conductor Material | Voltage | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Features | Length [x] | Length [x] | Cable Type | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Foil | 28 | 7 | ISO 10993 UL Style 2464 | Slate | 100 % | Copper Tinned | 300 V | Poly-Vinyl Chloride (PVC) | 20 AWG | 12.5 mm | 0.492 in | Aluminum | Biological Compatibility Drain Wire Rip Cord | 30.5 m | 100 ft | Multi-Conductor | 25 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Communication Control |
 ALPHA WIRE | Foil | 28 | 7 | ISO 10993 UL Style 2464 | Slate | 100 % | Copper Tinned | 300 V | Poly-Vinyl Chloride (PVC) | 20 AWG | 12.5 mm | 0.492 in | Aluminum | Biological Compatibility Drain Wire Rip Cord | 152.4 m | 500 ' | Multi-Conductor | 25 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Communication Control |
ALPHA WIRE | Foil | 28 | 7 | ISO 10993 UL Style 2464 | Slate | 100 % | Copper Tinned | 300 V | Poly-Vinyl Chloride (PVC) | 20 AWG | 12.5 mm | 0.492 in | Aluminum | Biological Compatibility Drain Wire Rip Cord | Multi-Conductor | 25 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Communication Control |
