EN3P5F Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 5 CONTACTS, PCB SOCKET, THERMOPLASTIC BODY

Part	Material Flammability Rating	Mounting Feature	Current Rating (Amps)	Primary Material	Number of Positions	Orientation	Voltage Rating	Applications	Insert Material	Color	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Contact Finish - Mating	Ingress Protection	Contact Material	Fastening Type
SWITCHCRAFT/CONXALL EN3P5FRAPCBW	UL94 V-0	Bulkhead - Front Side Nut	4 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount Right Angle Through Hole	Circuit Board Solder	Gold	IP66 IP68	Copper Alloy	Bayonet Lock

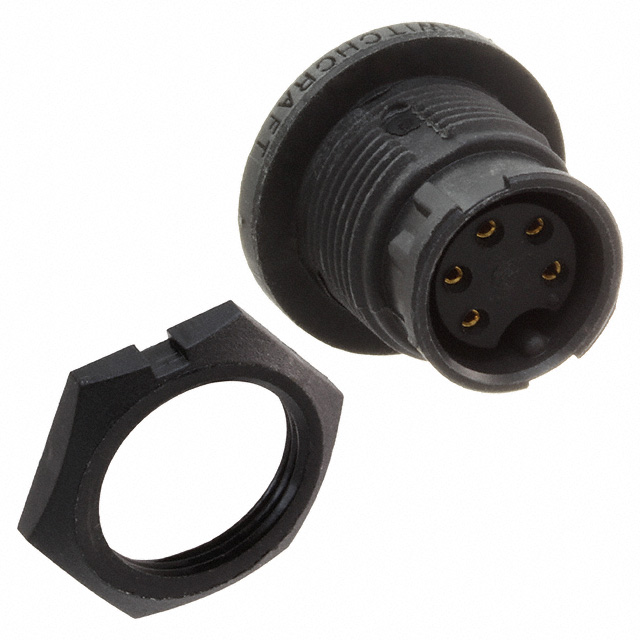

SWITCHCRAFT/CONXALL EN3P5FPX	UL94 V-0	Bulkhead - Front Side Nut	7.5 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount Through Hole	Solder	Gold	IP66 IP68	Copper Alloy	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P5FRAPCX	UL94 V-0	Bulkhead - Front Side Nut	4 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount Right Angle Through Hole	Solder	Gold	IP66 IP68	Copper Alloy	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P5FX	UL94 V-0	Bulkhead - Front Side Nut	7.5 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount		Gold	IP66 IP68	Copper Alloy	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P5FKX	UL94 V-0	Bulkhead - Front Side Nut	7.5 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount		Gold	IP66 IP68	Copper Alloy	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P5FRAPCBN	UL94 V-0	Bulkhead - Front Side Nut	4 A	Plastic	5	Keyed	250 VAC	General Purpose Instrumentation Marine Medical	Elastomer	Black	Unshielded	Receptacle Female Sockets	-40 C	65 °C	Panel Mount Right Angle Through Hole	Circuit Board Solder	Gold	IP66 IP68	Copper Alloy	Bayonet Lock
