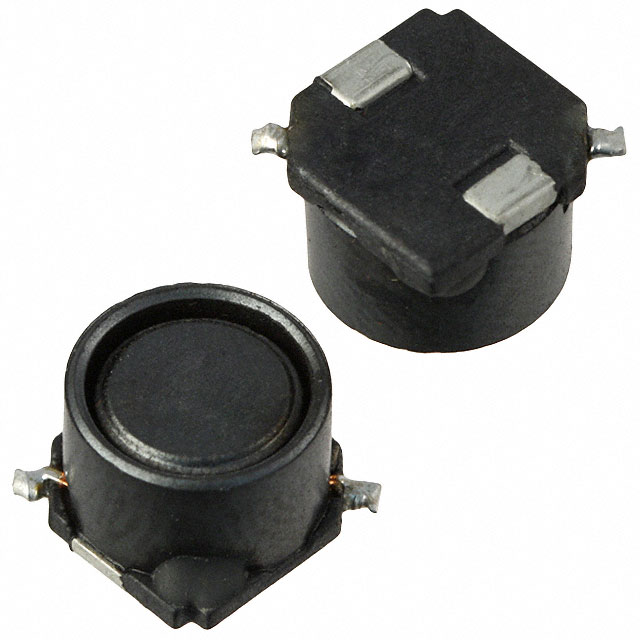

SRR7045 Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND7X7X4.5MM,120UH20%0.6A,SHDSMD /TAPE & REEL - 13" REEL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Frequency - Self Resonant | Current - Saturation (Isat) | Type | Tolerance | DC Resistance (DCR) | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) | Q @ Freq | Shielding | Current Rating (Amps) | Inductance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 7 MHz | 550 mA | Drum Core Wirewound | 20 % | 420 mOhm | Ferrite | 0.189 " | 4.8 mm | 30 796 kHz | Shielded | 900 mA | ||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 30 MHz | 3 A | Drum Core Wirewound | 20 % | 38 mOhm | Ferrite | 0.189 " | 4.8 mm | 7.96 MHz 10 | Shielded | 2.45 A | 6.3 µH | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 2.2 MHz 3 MHz | 160 mA | Drum Core Wirewound | 20 % | Ferrite | 0.189 " | 4.8 mm | 90 | Shielded | 0.33 A | 1 mH | 2.4 Ohm | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 12 MHz | 1 A | Drum Core Wirewound | 20 % | 115 mOhm | Ferrite | 0.189 " | 4.8 mm | 2.52 MHz 25 | Shielded | 1.6 A | 33 µH | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 5 MHz | 250 mA | Drum Core Wirewound | 20 % | Ferrite | 0.189 " | 4.8 mm | 27 796 kHz | Shielded | 0.54 A | 390 µH | 1.2 Ohm | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 13 MHz | 950 mA | Drum Core Wirewound | 20 % | 130 mOhm | Ferrite | 0.189 " | 4.8 mm | 2.52 MHz 26 | Shielded | 1.5 A | 39 µH | |
 Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 5 MHz | 300 mA | Drum Core Wirewound | 20 % | Ferrite | 0.189 " | 4.8 mm | 30 796 kHz | Shielded | 0.62 A | 270 µH | 840 mOhm | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 8 MHz | 0.6 A | Drum Core Wirewound | 20 % | Ferrite | 0.189 " | 4.8 mm | 40 796 kHz | Shielded | 1 A | 100 µH | 300 mOhm | |
Bourns Inc. | 125 °C | -40 C | 100 kHz | Surface Mount | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 18 MHz | 1.15 A | Drum Core Wirewound | 20 % | 110 mOhm | Ferrite | 0.189 " | 4.8 mm | 2.52 MHz 25 | Shielded | 1.8 A | 27 µH |
